Beverage hose Imawrap®

siliconehigh-pressuretransfer

Product overview

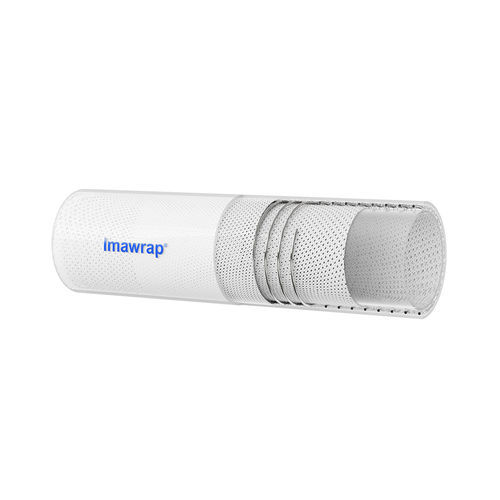

Imawrap® is a platinum-cured silicone mandrel-wrapped suction hose reinforced with four plies of polyester fabric and an SS 316 helical wire. Engineered for high-pressure transfer of semi-liquids and liquids, it is suitable for biopharma, pharmaceutical, food, beverage and cosmetics production and offers a compact bending radius for tight installations.

Manufacturing & materials
Manufactured in an ISO Class 7 cleanroom. Inner liner is made from low-volatile, platinum-cured silicone resin with extractables tested (TOXIKON base E&L studies) and meets NSF-51 food-grade resin requirements. Outer layers can be color-coded to support contamination control protocols.

Availability & fittings
Supplied in custom lengths, with or without SS 316L tri-clamp, BSP and other standard fittings. Suitable for high-pressure liquid transfers and vacuum operations.

Applications

• Biopharmaceutical process lines
• Pharmaceutical production
• Vacuum transfer systems
• Bioreactor feed and return lines
• Cosmetics, food & beverage processing

Certifications

• TOXIKON base E&L study results available for inner liner
• NSF-51 certification on resin liner
• Compliant with US FDA 21 CFR 177.2600 (food contact)
• Meets USP Class VI
• Conforms to ISO 10993
• RoHS compliant (free of restricted heavy metals)
• Free of phthalates / bisphenols / volatile plasticizers
• TSE/BSE certification (no animal-derived material)

Key features

• Flexible with good bending radius for compact routing
• Sizes available from 1/4" to 6" diameter (standard sizes listed below)
• Low-volatile, platinum-cured silicone construction
• NSF-51 approved silicone resin liner
• Suitable for vacuum service
• Kink resistant design
• Operating temperature range: -80°C to +180°C
• Sterilizable by autoclave, CIP & SIP
• Customizable color coding to prevent cross-contamination
• Odorless and tasteless
• Compliant with FDA 21 CFR, USP Class VI and European Pharmacopoeia 3.1.9

Standard sizes available (table)
# | PART NO. | SIZE IN MM (ID x OD) | SIZE IN INCH (ID) | MAX WORKING PRESSURE (BAR) @ 27°C | MIN BURST PRESSURE (BAR) @ 27°C | BEND RADIUS (MM) | VACUUM Hg @ 27°C (MM)
1 | 0613WP | 6 x 13 | 1/4" | 18.5 | 38 | 60 | 760
2 | 0916WP | 9 x 16 | 11/32" | 18.0 | 38 | 70 | 760
3 | 1220WP | 12 x 20 | 1/2" | 16.0 | 34.0 | 80 | 760
4 | 1624WP | 16 x 24 | 5/8" | 14.0 | 34 | 90 | 760
5 | 1927WP | 19 x 27 | 3/4" | 12.0 | 34.0 | 100 | 760
6 | 2535WP | 25 x 35 | 1" | 10.5 | 32.0 | 120 | 760
7 | 3242WP | 32 x 42 | 1 1/4" | 10.0 | 32.0 | 180 | 500
8 | 3850WP | 38 x 50 | 1 1/2" | 10.0 | 30.0 | 220 | 400
9 | 5062WP | 50 x 62 | 2" | 8.0 | 24.0 | 300 | 300
10 | 6476WP | 64 x 76 | 2 1/2" | 6.0 | 18.0 | 350 | C/P
11 | 7587WP | 75 x 87 | 3" | 5.0 | 15.0 | C/P | C/P
12 | 100112WP | 100 x 112 | 4" | 5.0 | 15.0 | C/P | C/P

Technical specifications

• Product name: Imawrap®
• Construction: Platinum-cured silicone mandrel-wrapped hose
• Reinforcement: 4 plies polyester fabric + SS 316 helical wire
• Inner liner: Platinum-cured silicone resin (NSF-51), extractables tested
• Manufacturing environment: ISO Class 7 cleanroom
• Temperature range: -80°C to +180°C
• Sterilization: Autoclavable; suitable for CIP & SIP
• Available fittings: SS 316L tri-clamp, BSP and other standard fittings
• Size range: from 1/4" to 6" diameter (standard sizes listed above)
• Intended use: High-pressure liquid transfer and vacuum applications
• Compliance: FDA 21 CFR 177.2600, USP Class VI, ISO 10993, RoHS
• Features: Low-volatile grade silicone, kink resistant, odorless & tasteless, customizable color coding
