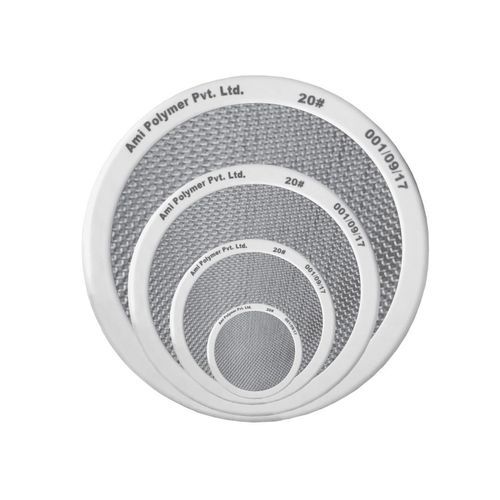

Solid particle separation sieve

material separationwire meshvibrating

Product overview
Sifters use vibration or combined vibration and ultrasonic energy to perform screening. Meshes are held in tension to facilitate material passage in the direction of vibration (horizontal or vertical depending on application). FDA-approved seals are used to minimise cross-contamination for pharmaceutical processing. Because particle size distribution affects dissolution and downstream processing, maintaining accurate sieve apertures is essential: correct wire thickness, precise nominal aperture sizes, and high tensile strength and tautness ensure consistent sifting performance.

Properties

• Crevice-free GMP designs for hygienic construction
• Material of construction: Stainless Steel 316-L quality
• Mesh sizes available from 4# to 635#
• Import-substitute designs available
• Certified as per international standards: ISO-9044, ASTM E-2016
• Special designs: Z-type sifters, Ultrasonic sifters
• Moulding options: SILICONE TRANSLUCENT / WHITE / STATIC DISSIPATIVE

Standard sizes available
ID | OD | THICKNESS | MESH | MOLDING
135 | 155 | 5 | 4# TO 635# | SILICONE TRANSLUCENT / WHITE / STATIC DISSIPATIVE
134 | 174 | 8 | 4# TO 635# | SILICONE TRANSLUCENT / WHITE / STATIC DISSIPATIVE
180 | 220 | 10 | 4# TO 635# | SILICONE TRANSLUCENT / WHITE / STATIC DISSIPATIVE
180 | 220 | 10 | 4# TO 635# | SILICONE TRANSLUCENT / WHITE / STATIC DISSIPATIVE
215 | 255 | 10 | 4# TO 635# | SILICONE TRANSLUCENT / WHITE / STATIC DISSIPATIVE
260 | 300 | 10 | 4# TO 635# | SILICONE TRANSLUCENT / WHITE / STATIC DISSIPATIVE
330 | 350 | 10 | 4# TO 635# | SILICONE TRANSLUCENT / WHITE / STATIC DISSIPATIVE
312 | 327 | 10 | 4# TO 635# | SILICONE TRANSLUCENT / WHITE / STATIC DISSIPATIVE
310 | 360 | 10 | 4# TO 635# | SILICONE TRANSLUCENT / WHITE / STATIC DISSIPATIVE
350 | 400 | 10 | 4# TO 635# | SILICONE TRANSLUCENT / WHITE / STATIC DISSIPATIVE
354 | 384 | 15 | 4# TO 635# | SILICONE TRANSLUCENT / WHITE / STATIC DISSIPATIVE
450 | 500 | 10 | 4# TO 635# | SILICONE TRANSLUCENT / WHITE / STATIC DISSIPATIVE
461 | 511 | 10 | 4# TO 635# | SILICONE TRANSLUCENT / WHITE / STATIC DISSIPATIVE
500 | 550 | 10 | 4# TO 635# | SILICONE TRANSLUCENT / WHITE / STATIC DISSIPATIVE
495 | 550 | 17 | 4# TO 635# | SILICONE TRANSLUCENT / WHITE / STATIC DISSIPATIVE
550 | 600 | 10 | 4# TO 635# | SILICONE TRANSLUCENT / WHITE / STATIC DISSIPATIVE
600 | 640 | 11 | 4# TO 635# | SILICONE TRANSLUCENT / WHITE / STATIC DISSIPATIVE
700 | 750 | 10 | 4# TO 635# | SILICONE TRANSLUCENT / WHITE / STATIC DISSIPATIVE
700 | 750 | 12 | 4# TO 635# | SILICONE TRANSLUCENT / WHITE / STATIC DISSIPATIVE
850 | 900 | 10 | 4# TO 635# | SILICONE TRANSLUCENT / WHITE / STATIC DISSIPATIVE
850 | 910 | 10 | 4# TO 635# | SILICONE TRANSLUCENT / WHITE / STATIC DISSIPATIVE
1150 | 1220 | 12 | 4# TO 635# | SILICONE TRANSLUCENT / WHITE / STATIC DISSIPATIVE
1470 | 1530 | 12 | 4# TO 635# | SILICONE TRANSLUCENT / WHITE / STATIC DISSIPATIVE
525 | 610 Z | 30 | 4# TO 635# | SILICONE TRANSLUCENT / WHITE / STATIC DISSIPATIVE
715 | 800 Z | 30 | 4# TO 635# | SILICONE TRANSLUCENT / WHITE / STATIC DISSIPATIVE
917 | 1000 Z | 30 | 4# TO 635# | SILICONE TRANSLUCENT / WHITE / STATIC DISSIPATIVE
1109 | 1200 Z | 30 | 4# TO 635# | SILICONE TRANSLUCENT / WHITE / STATIC DISSIPATIVE

Technical specifications

• Crevice-free GMP construction for hygienic operation
• Material: Stainless Steel 316-L quality
• Mesh range: 4# to 635# (reference in product data)
• Standards: ISO-9044, ASTM E-2016
• Available special designs: Z-type sifters, Ultrasonic sifters
• Moulding options: SILICONE TRANSLUCENT / WHITE / STATIC DISSIPATIVE
• Key manufacturing criteria: correct wire thickness, accurate nominal aperture sizes, high tensile strength and tautness for consistent sifting performance
• Certified to international standards; import-substitute designs available
