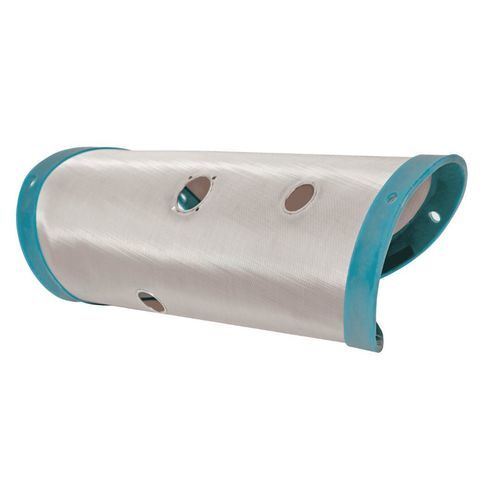

Wire mesh sieve FB series

stainless steel

Product description
Sieves FBD, FBE and FBP are designed for particle separation and solvent removal during drying and processing operations. Constructed in stainless steel 316L, the sieves are free of toxic lead and tin. The wire mesh edge is moulded in silicone or static‑dissipative rubber (toxicology tested). The super‑taut mesh maintains uniform aperture size for consistent throughput and extended service life.

Key properties

• Material of construction: Stainless steel 316L
• Crevice‑free GMP design for hygienic processing
• Aperture range: 20 µm to 125 µm
• Aperture shape: Dutch‑woven
• Suitable for very hard materials, sticky products and high load applications
• Finer openings available for improved filtration efficiency
• Edge molding options: Silicone or static‑dissipative rubber; SS cladding; circle cutting
• Certified to relevant international standards

Standard Size Available
OD | ID | THK | MESH SIZE | MOLDING | CAPACITY
450 | 400 | 5 | 20 µm to 125 µm | Silicone / Static‑dissipative | 85 LTR
574 | 497 | 5 | 20 µm to 125 µm | Silicone / Static‑dissipative | 125 LTR
777 | 727 | 5 | 20 µm to 125 µm | Silicone / Static‑dissipative | 250 LTR
950 | 900 | 5 | 20 µm to 125 µm | Silicone / Static‑dissipative | 500 LTR
1050 | 1000 | 5 | 20 µm to 125 µm | Silicone / Static‑dissipative | 800 LTR
1200 | 1150 | 5 | 20 µm to 125 µm | Silicone / Static‑dissipative | 1300 LTR
580 | 530 | 5 | 20 µm to 125 µm | Silicone / Static‑dissipative | 30 KG
738 | 688 | 5 | 20 µm to 125 µm | Silicone / Static‑dissipative | 150 KG
957 | 897 | 5 | 20 µm to 125 µm | Silicone / Static‑dissipative | 200 KG
1170 | 1110 | 5 | 20 µm to 125 µm | Silicone / Static‑dissipative | 250 KG
1475 | 1405 | 5 | 20 µm to 125 µm | Silicone / Static‑dissipative | 500 KG

Technical specifications

• Construction material: Stainless steel 316L
• Edge molding: Silicone or static‑dissipative rubber (toxicology tested)
• Toxic metals: Lead and tin free
• Aperture range: 20 µm to 125 µm
• Aperture shape: Dutch‑woven
• Thickness (THK): 5 mm (standard in table)
• Available moldings: Silicone / Static‑dissipative; SS cladding; circle cutting
• Design: Crevice‑free, GMP compliant
• Intended use: For very hard materials, sticky products and high load conditions
• Benefits: Taut mesh for consistent aperture, improved throughput and longer life
• Compliance: Certified as per international standards
