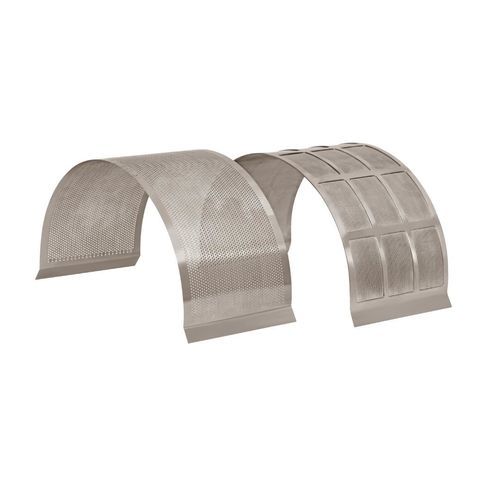

Perforated screen plate

metalcorrosion-resistantfor food industry applications

Product description
Cadmill Screens are perforated screens designed for comminuting mills (horizontal hammer mills) used for milling, sizing and de-lumping. Screen performance depends on product characteristics, hammer and machine design, operating conditions and, critically, the sieve perforation parameters (aperture size, shape, pitch and thickness). Perforated screens are supplied to match machine size and process requirements, with perforation sizes from 0.1 mm (100 µm) up to 25 mm; standard references include up to 20 mm (2000 µm). Very small or non-standard perforations below 0.5 mm are produced by laser perforation using S.L.E. Technology with certification.

Features

• Crevice-free GMP design for hygienic applications
• Material of construction: Stainless steel 316L
• Perforation sizes available from 0.1 mm to 25 mm (standard references include up to 20 mm)
• Perforation shapes: round, square; triangular and spherical grater perforations available
• Laser perforation (S.L.E. Technology) for very small or odd-size holes
• Certified to international standards
• Screens can be tailor-made to customer specification and machine size
• Laser printing available for lot identification

Technical specifications

• Product type: Cadmill Screens — comminuting mill / horizontal hammer mill screens
• Material: Stainless steel 316L
• Perforation size range: 0.1 mm (100 µm) up to 20 mm (2000 µm); availability up to 25 mm on request
• Very small/custom perforations: below 0.5 mm produced by laser perforation (S.L.E. Technology)
• Perforation shapes: round, square; triangular and spherical grater patterns available
• Design: crevice-free GMP design for easy cleaning and hygienic processing
• Customization: screens manufactured to customer specifications and machine dimensions
• Identification: optional laser printing for lot/batch identification
• Certification: supplied with certificates as per international standards
