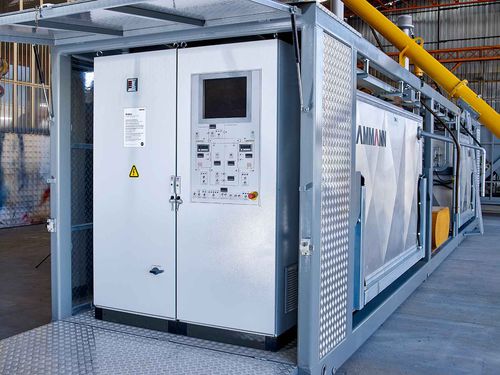

Continuous asphalt plant ModiTEK

transportable

Product overview
MODITEK is a fully automatic, containerized plant for producing polymer-modified bitumen with a nominal capacity up to 30 tons per hour. The unit is designed for contractors and plant operators requiring flexible mix designs for highways, bridges, airports, viaducts and other high-traffic infrastructures.

Capacity & mobility

• Container-sized, transportable configuration for rapid site deployment.
• Production capacity: up to 30 t/h to serve demanding paving projects and continuous supply needs.
• Compact footprint enabling installation in constrained sites.

Key features

• High-shear mill (1500 rpm) with adjustable gap for consistent polymer dispersion.
• Heated tanks mounted on load-cell weighing systems for accurate dosing and temperature control.
• Inverter-controlled mill feed pump with 50 m³/h capacity and pneumatic valves across piping for reliable automated control.
• 7 m³ batch tank with 60 mm rock-wool insulation, heating lines and dual agitators.
• Gathering conveyor belt and driven feed for material handling.

Control & automation

• Full automatic operation via touch-screen HMI for recipe management and process control.
• Statistical data logging and archiving for production records and traceability.
• Intelligent automation options: predictive maintenance, real-time monitoring and digital reporting.

Technology & sustainability

• Graphite-based soft seals for the mill with water cooling to extend service intervals.
• Burner systems compatible with alternative fuels and low-emission operation.
• Modular add-ons available: high-RAP recycling, warm-mix technologies and emission controls.

Technical specifications

• Production capacity: up to 30 t/h.
• High-shear mill – 1500 rpm, soft-starter control.
• Mill feeding pump: inverter-controlled, 50 m³/h.
• Heated tanks on load-cell weighing systems.
• Pneumatic valves throughout piping and conveyor collection system.
• 7 m³ batch tank with 60 mm rock-wool insulation, heating circuits and dual agitators.
• Full automatic operation via touch-screen monitor; data reporting and archiving.
