Transportable asphalt plant EmulTEK 15

mobilecontinuous

Overview
The EmulTEK 15 is a transportable bitumen emulsion plant with a production capacity of 15 tons per hour. It is designed for large-scale roadworks and infrastructure projects requiring continuous, high-volume emulsion output. The compact, mobile layout enables quick relocation between jobsites and supports multiple emulsion formulations and mix designs.

Applications

• Tack coats between binder and wearing courses
• Prime coats
• Surface dressing
• Slurry sealing
• Micro surfacing

Key features

• Rated capacity: 15 tons per hour
• Transportable, compact footprint for site-to-site mobility
• Flexible process accommodating various recipes and mix designs
• Semi-automatic or fully automatic operation options

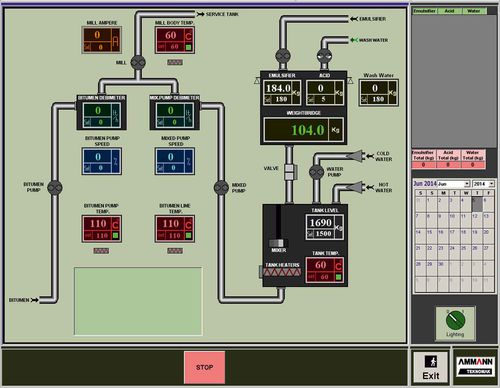

• Operator touchscreen for process control and monitoring

Ammann technology and benefits
Integrated automation (SCADA/PLC) enables precise dosing, repeatable quality and real-time data reporting. Digital platforms support predictive maintenance and remote diagnostics. Design provisions enable use of alternative fuels, high RAP recycling and warm-mix options, as well as measures for emission control and reduced environmental impact.

Technical specifications

• Semi-auto or automatic operation possibilities
• Colloidal mill for emulsion formation
• Stainless steel premix tanks on load cells for accurate dosing
• Heating lines for rapid water heating
• Stainless steel pump and flow meter
• Bitumen flow meter with heated body
• Barrel pump for additional safety
• Touch screen monitor for control and reporting
