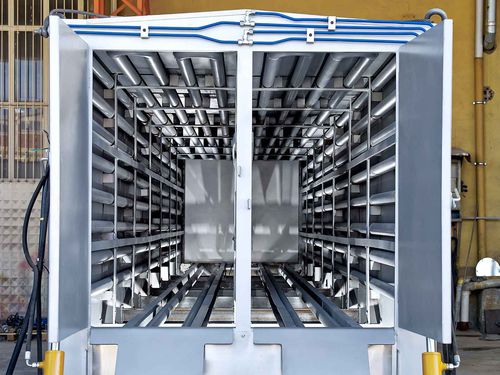

Horizontal drum storage DRUMTEK

Overview
DrumTEK is a mobile solution for receiving, heating and transferring bitumen directly from barrels. The system allows producers to accept barrel deliveries, store bitumen off-season and transfer heated product to tanks for further processing or use.

Key benefits

• Accept bitumen in barrels to expand supplier options and reduce procurement costs
• Enable off-season stockpiling to optimise purchase timing and costs
• Mobile design simplifies transport, on-site delivery and temporary storage
• Integrated heating lines support controlled warming before transfer

Performance
DrumTEK provides controlled thermal productivity with heating capability up to 10 t/h and integrated transfer equipment sized for continuous operations.

Additional highlights

• Available in multiple models to match site logistics
• Integrated pump and heating circuits for direct barrel-to-tank transfer
• Insulated body for temperature retention during transport and storage

Technical specifications

• Model variants: 24–30 barrel capacity
• Bitumen storage: 12 tonnes with integrated heating lines
• Insulation: 60 mm rock wool covering full body
• Bitumen discharge pump: 50 m³/h
• Heating capability / thermal productivity: up to 10 t/h
