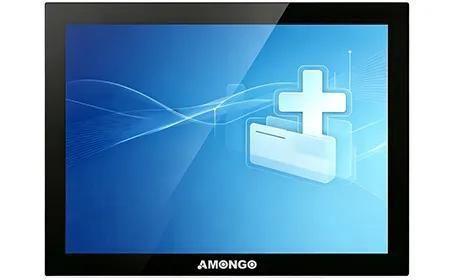

Touch screen monitor AMG-21OPJH01T1multi-touch screenLED backlightprojected capacitive touchscreen
Add to favorites
Compare this product
Characteristics
- Technology
- touch screen, multi-touch screen, projected capacitive touchscreen, PCAP touchscreen, capacitive touch screen, LED backlight
- Applications
- medical
- Display size
- 21.5"
- Resolution
- 1920 x 1080, full HD
- Other characteristics
- HDMI, USB, VGA, DisplayPort, wide viewing angle, wide temperature range, dust-proof, vandal-proof
- Length
476.64 mm
(18.765 in)- Width
268.11 mm
(10.5555 in)- Operating temperature
Max.: 50 °C
(122 °F)Min.: 0 °C
(32 °F)
Description
Product description

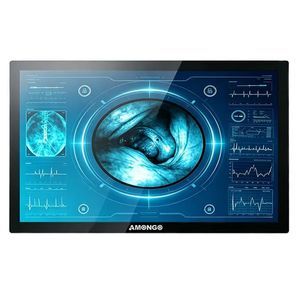

This 21.5" Full HD medical touch display AMG-21OPJH01T1 is designed for hospital self-service and clinical terminals. It offers an optional 10-point PCAP capacitive touchscreen and a full-flat front panel with dust- and vandal-proof construction to meet the demands of healthcare environments.
Key features
Typical applications
Technical specifications
This 21.5" Full HD medical touch display AMG-21OPJH01T1 is designed for hospital self-service and clinical terminals. It offers an optional 10-point PCAP capacitive touchscreen and a full-flat front panel with dust- and vandal-proof construction to meet the demands of healthcare environments.
Key features
- Full-flat front panel for easy cleaning
- Dust-proof and vandal-proof structure
- Supports multiple signal interfaces (VGA / DP / HDMI)
- Wide operating temperature range for stable performance
Typical applications
- Hospital self-service terminals
- Patient registration kiosks
- Interactive digital signage in healthcare facilities
- Medical report printing terminals and workstations
Technical specifications
- Screen Size: 21.5"
- Active Display Area (mm): 476.64 (H) x 268.11 (V)
- Pixel Pitch (mm): 0.248 (H) × 0.248 (V)
- Display Mode: Normally Black
- Display Resolution (pixel): 1920x1080
- Contrast Ratio: 3000:1
- Display Color: 16.7M
- Brightness: 250 nits
- Backlight: LED
- Viewing Angles (CR=10): 178(H);178(V)
- Response Time (Typ.Tr+Tf): 18 ms
- Touch Screen: PCAP Touch (10 points)
- Signal Connector: VGA / DP / HDMI / Audio
- Power Input: DC 12V
- Touch Controller: USB
- Operating Temperature: 0~50℃ (non-condensation)
- Storage Temperature: -20~60℃ (non-condensation)
- Relative Humidity: 5~90 (%RH)
