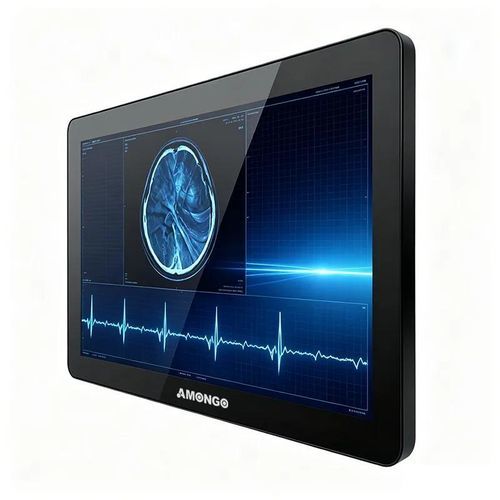

LCD monitor AMG-15OPTD01G1

with touchscreenLED backlightPCAP touchscreen

Product overview
This 15.6-inch medical monitoring display is designed for clinical environments and provides anti-vandal protection with an IP65-rated front panel.

Key features

• Front surface IP65 waterproof
• 3 mm tempered glass, surface hardness MoHs 7
• Supports embedded and VESA installation
• Compliant with CE and CCC certifications
• Optional touch-screen with USB controller

Typical applications

• Medical imaging diagnosis
• Clinical patient monitoring
• Surgical assistance and OR displays
• Telemedicine and remote consultation

Specifications
Model Name: AMG-15OPGE01G1
Screen Size: 15.6-inch
Active Display Area (mm): 344.2176 (H) x 193.6224 (V)
Pixel Pitch (mm): 0.0298 (H) x 0.0896 (V)
Display Mode: Normally Black
Display Resolution (pixel): 3840 x 2160
Contrast Ratio: 1400:1
Color Support: 16.7M
Brightness: 500 nits
Backlight: LED
Viewing Angles (CR=10): 178° (H); 178° (V)
Response Time (Typ. Tr+Tf): 25 ms
Touch Screen: Optional
Signal Connector: HDMI / DP
Power Input: DC 12V
Touch Controller: USB
Operating Temperature: 0 ~ 50 °C (non-condensing)
Storage Temperature: -20 ~ 60 °C (non-condensing)
Relative Humidity: 5 ~ 90 %RH

Technical specifications

• Model Name: AMG-15OPGE01G1
• Screen Size: 15.6-inch
• Resolution: 3840 x 2160
• Brightness: 500 nits
• Contrast Ratio: 1400:1
• Backlight: LED
• Viewing Angles: 178° / 178°
• Response Time: 25 ms
• Touch Screen: Optional (Touch controller: USB)
• Signal: HDMI / DP
• Power Input: DC 12V
• Surface: IP65 waterproof, 3 mm tempered glass, MoHs 7
• Certifications: CE, CCC
• Operating Temp: 0 ~ 50 °C (non-condensing)
• Storage Temp: -20 ~ 60 °C (non-condensing)
• Relative Humidity: 5 ~ 90 % RH
