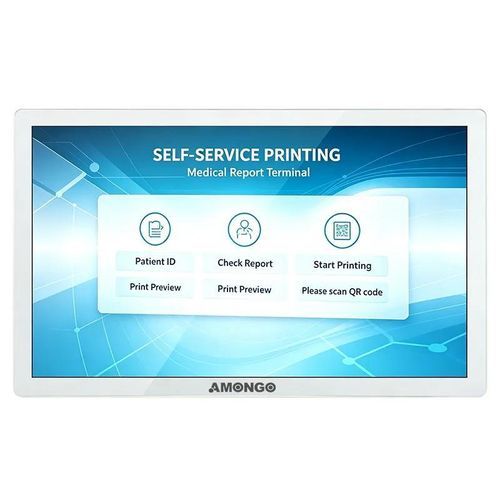

Touch screen monitor AMG-27OPGE01G1

LED backlightmedical27"

Description
This 27-inch FHD medical high-brightness display module is intended for clinical and self-service medical environments. It features a full-flat front panel with 3 mm scratch-resistant tempered glass and supports multiple signal interfaces for integration into kiosks, terminals and diagnostic stations.

Key features

• Full-flat design for flush installation.
• Dust-proof and vandal-resistant structure.
• Multiple signal interfaces: HDMI / DVI / VGA.
• DC 12V input and AC110-230V / 50Hz compatibility.
• Wide operating temperature range for continuous use.

Typical applications

• Hospital self-service terminals.
• Patient registration kiosks.
• Interactive medical signage and information displays.
• Medical report printing terminals and clinical workstations.

Technical specifications

• Screen Size: 27"
• Active Display Area (mm): 597.6 (H) × 336.15 (V)
• Pixel Pitch (mm): 0.31125 (H) × 0.31125 (V)
• Display Mode: Normally Black
• Display Resolution (pixel): 1920 x 1080
• Contrast Ratio: 1000:1
• Display Color: 16.7M
• Brightness: 1000 nits
• Backlight: LED
• Viewing Angles (CR=10): 178° (H); 178° (V)
• Response Time (Typ. Tr+Tf): 20 ms
• Touch Screen: Optional
• Signal Connector: HDMI / DVI / VGA
• Power: AC110-230V / 50Hz
• Tempered glass: 3 mm
• Touch Controller: Operating
• Operating Temperature: 0 ~ 50 °C (non-condensing)
• Storage Temperature: -20 ~ 60 °C (non-condensing)
• Relative Humidity: 5 ~ 90 %RH
