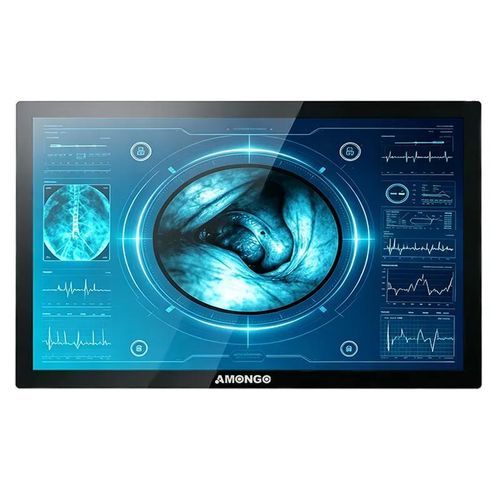

Touch screen monitor AMG-32OPGER1G2

LED backlightmedical32"

Product Description
This 32-inch 4K UHD medical display AMG-32OPGER1G2 is designed for endoscopic imaging, operating room monitoring and hospital kiosk applications. The front panel provides IP65 protection and a 3 mm tempered glass with IK08 impact rating for clinical environments requiring dust- and splash-resistance.

Key features

• 3840×2160 (4K UHD) resolution, 32-inch screen.
• 550 nits brightness with LED backlight.
• 3 mm tempered glass; hardness Mohs 7H; IK08 impact resistance.
• Front panel ingress protection: IP65 (dust-proof and water-proof).
• Wide viewing angles 178°/178°; Normally Black display mode.
• Optional touch screen and touch controller.

Typical applications

• Endoscopic imaging display equipment.
• Operating room monitoring and visualization.
• Hospital self-service kiosks and information terminals.
• Medical report inquiry kiosks and patient service points.
• Waiting area information displays.

Specification
Screen size: 32"
Active display area (mm): 697.3056 (H) × 392.2344 (V)
Pixel pitch (mm): 0.18159 × 0.18159
Display mode: Normally Black
Resolution: 3840 × 2160
Contrast ratio: 1000:1
Display colors: 1.07B
Brightness: 550 nits
Backlight: LED
Viewing angles (CR=10): 178° (H); 178° (V)
Response time (Typ. Tr+Tf): 14 ms
Tempered glass: 3 mm
Touch screen: Optional
Signal connector: 2×HDMI / 2×DP / 1×DP-OUT
Power: AC110–230V / 50Hz
Operating temperature: 0–50°C (non-condensing)
Storage temperature: -20–60°C (non-condensing)
Relative humidity: 5–90% RH

Technical specifications

• Model: AMG-32OPGER1G2
• Display size: 32-inch UHD (3840×2160)
• Brightness: 550 nits
• Durability: 3 mm tempered glass, IK08, Mohs 7H
• Ingress protection: IP65 front
• Connectivity: 2×HDMI, 2×DP, 1×DP-OUT
• Optional: Touch screen / touch controller
• Operating range: 0–50°C, 5–90% RH
