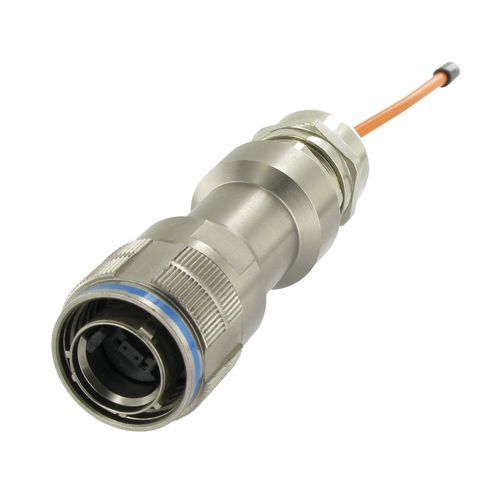

Combined connector TVOP

fiber opticsDINcircular

Product overview
The TVOP is a butt-joint fiber optic connector designed for harsh military and industrial environments. It integrates a 38999 Series III-style rugged shell with an optimized insert for butt-joint termini (2.5 mm diameter), providing low-loss connectivity for demanding installations. Available for multimode and singlemode fibers with PC or APC endfaces; supports high return loss and up to 8 channels.

Key features

• 38999 Series III-style rugged shell
• Optimized insert for 2.5 mm butt-joint termini
• Multimode and Singlemode options; PC or APC endfaces for high return loss
• Supports up to 8 channels

Applications

• Battlefield communications
• Armored and ground vehicles
• Military avionics and airborne systems
• Industrial harsh-environment installations

Additional details
The TVOP connector is suitable for indoor and outdoor deployments where mechanical robustness and reliable optical performance are required. It is compatible with 38999 or derivative shell families, facilitating integration with existing mounted systems and cable assemblies.

Technical specifications

• Shell type: 38999 Series III-style (or derivative)
• Termini: Butt-joint standard termini, diameter 2.5 mm
• Fiber types: Multimode and Singlemode
• Polish/return loss: PC or APC options
• Number of channels: Up to 8
• Use case: Rugged/harsh environments (military, automotive, industrial)
