Data connector LC Field
bayonetmetal

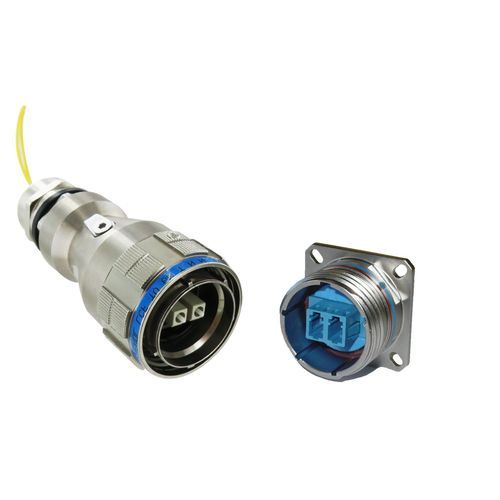

Data connector - LC Field - AMPHENOL SOCAPEX - bayonet / metal
Data connector - LC Field - AMPHENOL SOCAPEX - bayonet / metal
Data connector - LC Field - AMPHENOL SOCAPEX - bayonet / metal - image - 2
Data connector - LC Field - AMPHENOL SOCAPEX - bayonet / metal - image - 3
Data connector - LC Field - AMPHENOL SOCAPEX - bayonet / metal - image - 4
Data connector - LC Field - AMPHENOL SOCAPEX - bayonet / metal - image - 5
Add to favorites
Compare this product

Characteristics

Type
data
Connection type
bayonet
Material
metal

Description

Key features
  • Sealed against fluids and dust (IP68)
  • Shock- and vibration-resistant design
  • Number of channels: 2
  • Typical insertion loss: 0.5 dB (multimode and singlemode)
  • Durability: 500 mating/unmating cycles (variation < 0.2 dB)


Applications
  • Military communications
  • Base stations
  • Navy and marine systems
  • Railway communication systems


Product description
  • The LC Field connector transforms a standard LC duplex patch cord into a rugged field connector without any field termination by integrating the cord into a metallic plug using the patented RJStop® system.
  • The metallic plug provides protection against shock, dust and fluids and mates with a receptacle via a Tri‑Start Thread coupling mechanism (MIL‑DTL‑38999 Series III type).
  • An anti-decoupling device is incorporated to ensure a secure connection in high-vibration environments.
  • No field termination is required; a standard LC duplex patch cord is used inside the metallic plug for quick replacement and maintenance.


Technical information
  • Patented RJStop® system enabling the use of a standard LC duplex patch cord integrated into a metallic plug for enhanced protection
  • Tri‑Start Thread coupling mechanism compatible with MIL‑DTL‑38999 Series III type
  • Anti-decoupling device for secure connections under high vibration
  • Typical insertion loss: 0.5 dB (MM and SM)
  • Durability: 500 mating/unmating cycles with <0.2 dB variation


Technical specifications
  • Ingress protection: IP68 (sealed against fluids and dust)
  • Shock and vibration resistant
  • Channels: 2
  • Typical insertion loss: 0.5 dB (MM and SM)
  • Durability: 500 mating/unmating cycles (<0.2 dB variation)
  • RJStop® system: uses a standard LC duplex patch cord inside a metallic plug (no field termination)
  • Coupling: Tri‑Start Thread (MIL‑DTL‑38999 Series III type) with anti-decoupling device
  • Intended markets: military communications, base stations, navy, railways
