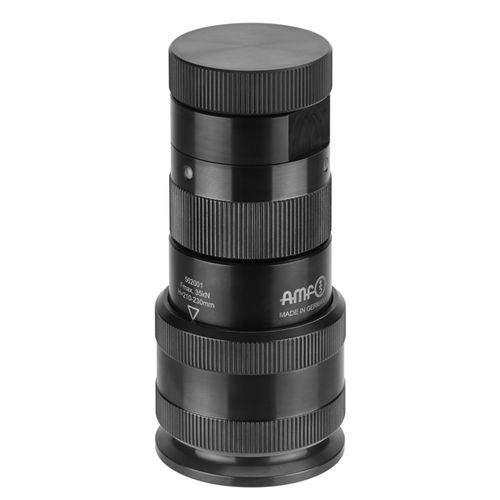

Position foot 6425A-230

machinesteeladjustable

Support element with fine thread and base element 6425FB Body and base element, tempered steel, burnished. Spindle and bearing smooth, tempered steel, plasma-nitrided and burnished. Can be used on T-slots and grid plates by means of adapters, which are screwed in the base element. The support element can be sensitively adjusted to a maximum bearing height of 330 mm under load. The bearings can be adjusted with an angle of + / - 3°. Note: - maximum height 330 mm - 3 different bearings are held in place by magnets - bearings (smooth, spherical, point) are interchangeable Advantage: - Used as an extra support point to prevent sagging and vibration of the workpiece. - Mounted directly under a clamping point, distortion of the workpiece is prevented. - Compensation of large workpiece tolerances (castings and forgings). - For use in horizontal and vertical clamping.
