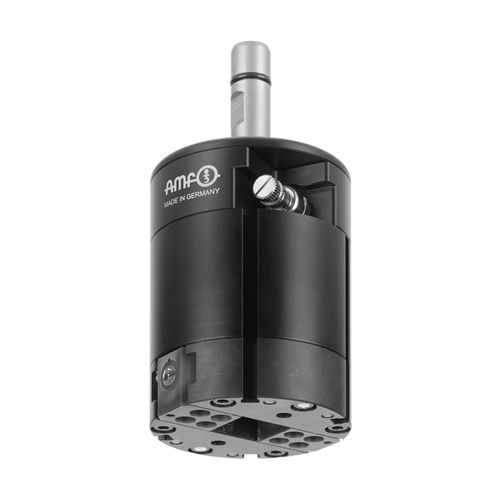

Pneumatic gripper 1650-210

parallelhandling

Gripper without compensation unit, pneumatic For part handling in the machine tool. The gripper achieves a fully automatic workpiece change during the machining process on a machine tool. It is changed from the tool magazine of the milling machine and enables workpiece handling between the part storage and the clamping device. It is actuated by means of compressed air, which is routed through the machine spindle. The gripper closes pneumatically and opening takes place by means of spring force. Note: - Max. permitted speed: 20 [rpm] - Suitable for Weldon seat and hydraulic expansion chucks - Designed for ambient temperatures from 0°C to 60°C - Transportation of workpieces up to a max. of 8 kg - The standard supply includes three replacement seals - Available in two designs for workpiece sizes up to a max. of 50 mm or 70 mm - The gripping force can easily be adjusted by means of a pressure control valve and thereby adapted to the relevant requirements of the workpieces - Easily exchangeable gripper inserts for handling various workpiece geometrics - Easy implementation of unmanned shifts, which means greater machine utilisation and more flexibility - Tremendous reduction of set-up times for smaller to medium-sizes batches
