4-point clamping unit 6206S4L
pneumatically-operatedmachiningworkpiece

4-point clamping unit
4-point clamping unit
Add to favorites
Compare this product


Characteristics

Type
4-point, pneumatically-operated
Applications
machining, workpiece
Clamping force

10 kN, 17 kN

Description

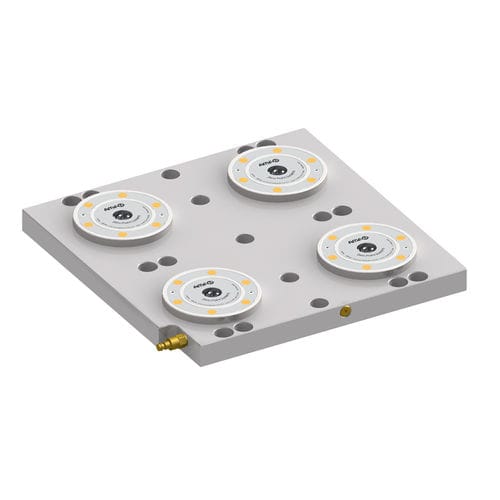

4-point clamping station Pneumatic unlocking. Opening operating pressure: K10.3 min. 5 bar. K20.3 min. 4.5 bar. Steel, unhardened. Repeat accuracy < 0.005 mm. Design: Pneumatic clamping station for setting time-optimised clamping on machine tables with groove spacing of 63, 100 and 125 mm. Fastening is via M12 socket head screws. At least two fitting bores are attached for alignment. The insertion dimension of the clamping modules is 200 mm. The pneumatic quick-coupler is premounted. Note: * Please observe the installation instructions. Advantage: - Low overall height
