Mechanical clamping system 569611

for additive manufacturingmodularsmall

Overview

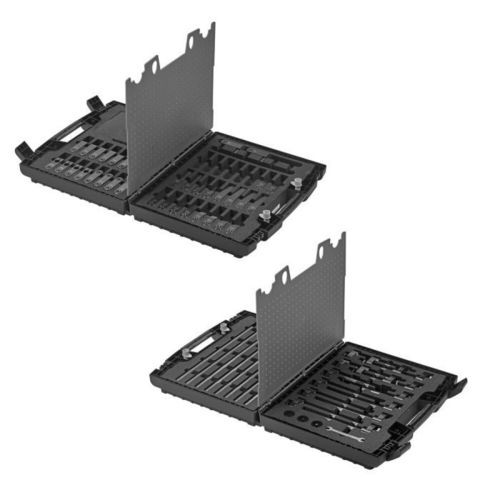

Set 3 – 141 components. Modular kit delivered in two heavy‑duty cases divided into separable halves for space‑efficient storage in standard workshop drawers. Suitable for small to large components in a wide range of shapes.

Application
The standard configuration contains a varied selection of system components that can be combined flexibly to build fixtures and supports for production, assembly and inspection tasks. The transport cases protect components and enable tidy, space‑saving storage while keeping the system accessible and portable.

Note
For details on included system elements see the respective product pages in the catalogue. The sets do not include base plates 2210.

Product variants
Order no. | Set | Number of cases | Length [mm] | Width [mm] | Height [mm] | Weight [kg] | Availability
569609 | 1 | 2 | 500 | 420 | 125 | 22.75 | (see site)
569610 | 2 | 2 | 500 | 420 | 125 | 29.26 | (see site)
569611 | 3 | 2 | 500 | 420 | 125 | 33.17 | (see site)

Characteristics / technical specifications

• Order no. (example main product): 569611
• Designation: Set (standard configuration)
• Contents: Set 3 – 141 components
• Number of cases: 2 heavy‑duty cases, each divided into two separable halves
• Case dimensions (L x W x H): 500 x 420 x 125 mm
• Weight (example variant 569611): 33.17 kg
• Exclusions: sets do not contain base plates 2210
