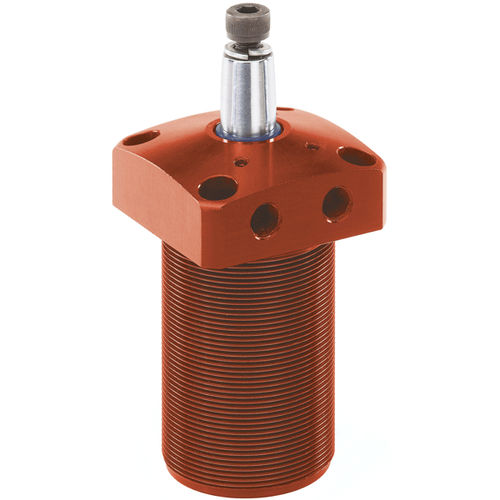

Pneumatic clamp 6829KR/KL
swing

pneumatic clamp
pneumatic clamp
Add to favorites
Compare this product


Characteristics

Type
pneumatic
Other characteristics
swing
Clamping force

Min.: 0.2 kN

Max.: 1.1 kN

Description

Swing clamp, pneumatic, flange-mounting version double-acting For recessed installation in fixtures. Both compressed-air connections are in the flange. Piston rod non-rusting, polished. Body is made of aluminium, anodised. HART-COAT® surface for wear-resistance. Including screw and spring washer for simple setting of the clamp arm position. Mounting: - from above with cap screws through the flange - from below in a bore in the fixture using grooved nuts and clamping against the flange - from above with grooved nuts against the fixture Accessories (not included in pack): - Clamping arm 6829SP - Grooved nut 6829N - Clamping screw 6880 Note: The mounting holes in the flange are the same as in threaded flange no. 6828GF. Operate only with lubricated air.
