Diaphragm pressure switch SMA seriespistondifferentialstainless steel
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm, piston
- Pressure type
- differential
- Material
- stainless steel
- Protection level
- rugged, IP65, IP64
- Other characteristics
- high-pressure, stainless steel, IP65, IP67
- Pressure range
Max.: 345 bar
(5,003.8 psi)Min.: 0.7 bar
(10.15 psi)- Switching power: current
3 A, 5 A, 10 A
- Process temperature
Max.: 120 °C
(248 °F)Min.: -29 °C
(-20 °F)
Description

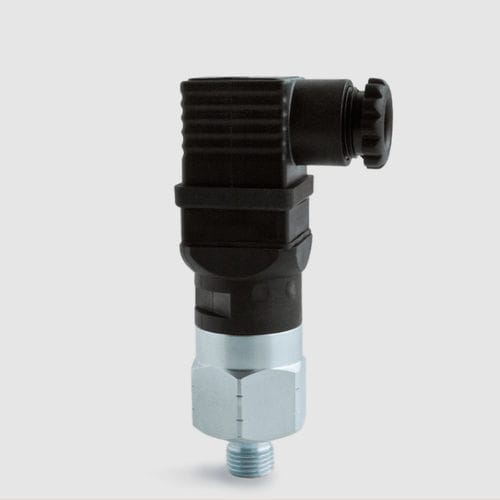

The SMA / SMF high-pressure switch is ideal for many hydraulic and pneumatic applications. It utilizes a proven piston/diaphragm design to provide excellent accuracy and high proof pressures with zero leakage. Any flying leads are available with an IP67 rating option, making it an exceptional product for harsh environments.
NEW: Now available with an IP67-rated protective cover for flying lead options.
Features
Snap action micro switch
Factory set or field adjustable
Diaphragm/piston design for longevity
High proof pressure
UL and CE approved
Applications
Hydraulic system control
Material handling equipment
Lubrication systems
Garbage compactors
