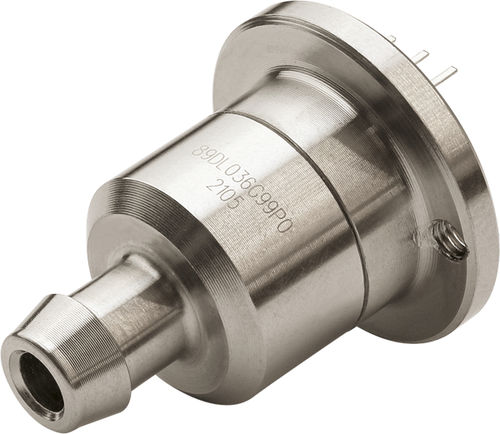

Relative pressure sensor 89-series

absolutevacuumpiezoresistive

The Series 89 is a miniature and robust pressure transducer with calibrated and temperature compensated output . It incorporates MEMS sensing chip which is oil-filled and SS isolated. The sensor is configured with excellent media compatibility in its class of board-mount. Multi-order compensation for correction of offset, sensitivity, thermal errors and nonlinearity are accomplished in factory via an internal DSP running a correction algorithm with calibration coefficients stored in on-chip EEPROM. A variety of output configuration, including resolution, sampling rate, output interface are available to provide simple and ready- to-use solution for a wide rage of application. Multiple chosen for pneumatic interface are suitable for system integration. Multiple choice for gas or fluid interface are available upon request. PCB pressure sensor with stainless steel membrane • - Various of pressure rages: 1bar…7bar • - High media compatibility due SS membrane • - PCB mountable THT • - Analogue and digital output signal • - Variouse of pressure ports on request • - Compact design
