Low pressure sensor APP-9U
relativedifferentialvacuum

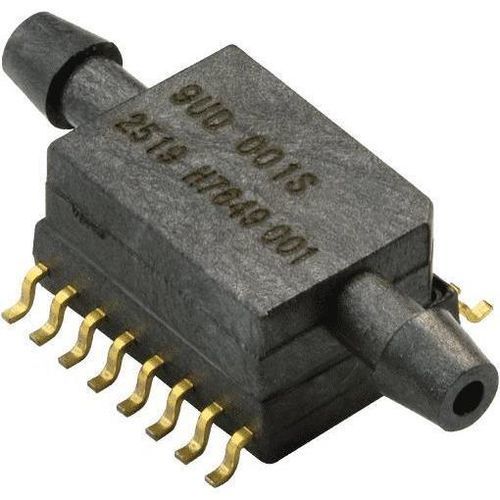

Low pressure sensor - APP-9U - Angst+Pfister Sensors and Power AG - relative / differential / vacuum
Low pressure sensor - APP-9U - Angst+Pfister Sensors and Power AG - relative / differential / vacuum
Add to favorites
Compare this product
Go to the Angst+Pfister Sensors and Power AG website for more information

Characteristics

Pressure type
relative, differential, vacuum
Output
analog
Mounting
SMD
Other characteristics
high-accuracy, low pressure, low power consumption, high-sensitivity
Pressure range

Min.: 0 mbar
(0 psi)

Max.: 200 mbar
(2.9 psi)

Precision

0.5 %

Process temperature

Min.: -40 °C
(-40 °F)

Max.: 85 °C
(185 °F)

Description

Product Description
High performance ultra-low pressure sensor. Exceptionally good long-term drift performance. Unamplified output, suitable both for high accuracy and also low cost applications. Low build height with horizontal ports possible. Function and pin-out compatible with obsolete TE SM9D series.

Specifications
  • Measuring range: 0 to 5...200 mbar
  • Pressure type: Gauge, Vacuum, Differential
  • Output type: Unamplified
  • Accuracy [%]: 0.5 FS
  • Supply voltage [V]: 0...x V (Bridge)
  • Temp. range [C°]: -40 to +85
  • Temperature compensation: No
  • Mounting style: SMD
  • Pressure port: Dual port, Barbed port
  • Supplier: Angst+Pfister Sensors and Power


Characteristics / Technical Specifications
  • High performance ultra-low pressure sensor
  • Exceptionally good long-term drift performance
  • Unamplified output
  • Suitable for high accuracy and low cost applications
  • Low build height with horizontal ports possible
  • Function and pin-out compatible with obsolete TE SM9D series
  • Measuring range: 0 to 5...200 mbar
  • Pressure type: Gauge, Vacuum, Differential
  • Output type: Unamplified
  • Accuracy: 0.5% FS
  • Supply voltage: 0...x V (Bridge)
  • Temperature range: -40 to +85°C
  • Temperature compensation: No
  • Mounting style: SMD
  • Pressure port: Dual port, Barbed port
