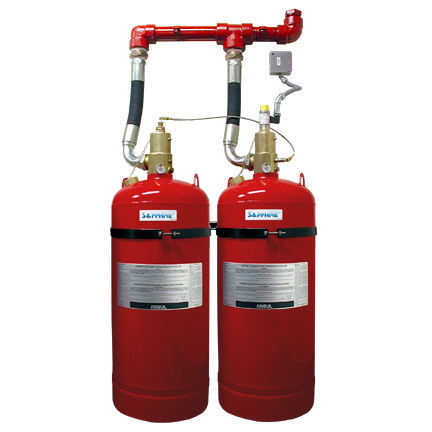

Clean agent fire extinguishing system SAPPHIRE® 25
Add to favorites
Compare this product
Characteristics
- Options
- clean agent
Description
Product Overview
The SAPPHIRE clean-agent fire suppression system uses Novec 1230 fluid to provide rapid total‑flood fire extinguishing with minimal residue. The agent has zero ozone depletion potential, an atmospheric lifetime of approximately five days and a Global Warming Potential (GWP) of 1.0. The 25 bar variant is designed for applications where an electrically non‑conductive, low‑residue, and quickly dissipating extinguishing medium is required, and where occupied spaces or sensitive assets must be protected without shutdown.
Features
Benefits and Typical Applications
Technical resources
Technical specifications
The SAPPHIRE clean-agent fire suppression system uses Novec 1230 fluid to provide rapid total‑flood fire extinguishing with minimal residue. The agent has zero ozone depletion potential, an atmospheric lifetime of approximately five days and a Global Warming Potential (GWP) of 1.0. The 25 bar variant is designed for applications where an electrically non‑conductive, low‑residue, and quickly dissipating extinguishing medium is required, and where occupied spaces or sensitive assets must be protected without shutdown.
Features
- Fixed‑nozzle total‑flood design with six discharge nozzle sizes
- Available 25 bar agent storage and discharge variant
- UL / ULC Listed and FM Approved
- Suitable for occupied areas at approved design concentrations
Benefits and Typical Applications
- Rapid suppression with minimal residue and reduced cleanup requirements
- Electrically non‑conductive agent — ideal where power or electronics must remain energized
- Low toxicity at design concentrations — suitable for normally occupied spaces
- Common applications: data centers, telecommunications rooms, museums and archives, power generation, petrochemical and industrial control rooms
Technical resources
- ANSUL SAPPHIRE Suppression Systems Product Overview (Brochure)
- F-2011040-03 SAPPHIRE Clean-Agent Fire Suppression Systems (Datasheet)
- F-2016314-01 SAPPHIRE Clean Agent Fire Suppression System with AUTOPULSE Z-20 Agent Releasing Control Panel (Specification Guide)
- Application sheets: Petrochemical / Oil & Gas and Power Generation
- ANSUL SAPPHIRE Data Centre Application Overview
Technical specifications
- Agent: Novec 1230 clean (halocarbon) agent with zero ozone depletion potential
- Atmospheric lifetime: ~5 days
- Global Warming Potential (GWP): 1.0
- Available system variant on this page: 25 bar
- Nozzle options: six discharge nozzle sizes
- Listings/approvals: UL / ULC Listed, FM Approved
- Designed for electrically non‑conductive protection and for use in occupied spaces
Catalogs
No catalogs are available for this product.
See all of ANSUL‘s catalogsOther ANSUL products
Halocarbon Systems
