Rotating gate SGR

pedestrianautomaticmotorized

Product overview

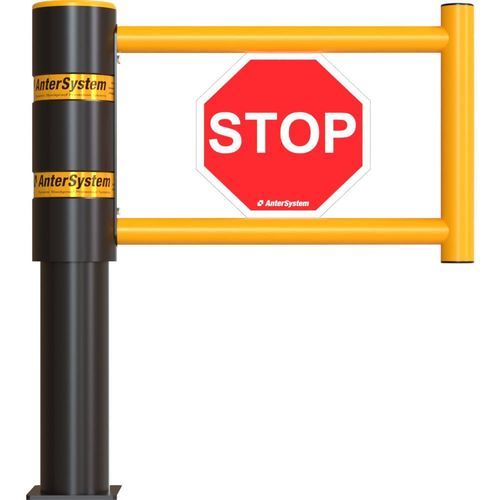

SGR Safety Gate with STOP sign provides a designated pedestrian crossing and controlled access point for industrial, warehouse and production environments. Its rotating construction houses the opening mechanism inside the post to ensure smooth operation and simplified external cleaning to meet hygiene requirements.

Key features

• One-way opening limited to 90° for controlled pedestrian flow
• Internal self-closing system integrated into the post
• Concealed hinges that automatically lock the gate without an auxiliary support post
• Rotating construction with internal mechanism for smooth, low‑maintenance operation
• Automation options: automatic locking and automatic opening/closing
• Optional visual and acoustic indicators to display gate status
• Integration capability with building automation and safety systems (BMS/PLC)
• Forklift detection: automatic locking when movement is detected inside sensor range and automatic release when the vehicle clears the area

Other information
The SGR gate range with automatic support systems secures workplace access points and is designed to combine a one-way 90° opening with an internal self-closing mechanism, reducing the need for additional support structures.

Technical specifications

• Colour options: yellow and black (base optionally in stainless or galvanized steel)
• Material: polymer
• Width: 500 mm – 1400 mm
• Height: 1100 mm
• Application: pedestrian access and crossing points with STOP sign and available automation options
• Internal fixing: M30 anchors
• External fixing: M12, M16 anchors
• Certification: TÜV certificate
