Multi-leaf gate

manualautomaticremote-controlled

Overview

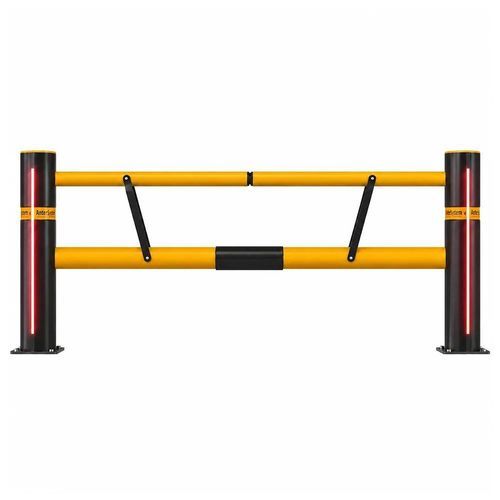

Traffic Gate Double Automatic is an automatic safety gate designed to control vehicle access in wide passages, loading areas and other industrial zones where a single-leaf gate would not provide sufficient coverage. Its two-leaf construction secures wider openings while maintaining convenient access for forklifts and other industrial vehicles. The gate opens and closes automatically, improving traffic flow and reducing the need for manual operation. An important safety function is built into the closing process: if the gate detects a person or an obstacle passing through while it is closing, the movement stops automatically, helping to prevent accidental contact.

Signalling and safety
Integrated LED warning lights and optional acoustic signals provide clear information about the gate status and increase awareness in the surrounding area.

Control and detection options

• Manual push button
• Remote control
• Access card system
• RFID
• UWB (Ultra-Wideband)
• Motion sensors and laser scanners
• AI vision systems detecting vehicles, pedestrians or selected traffic situations
• Integration with dock equipment and other external devices

Materials and colours
Thanks to its flexible polymer construction, Traffic Gate Double Automatic combines effective access control with high resistance to impacts and demanding industrial conditions. Colour options: yellow and black. The base section can optionally be made of stainless or galvanized steel.

Applications
Suitable for warehouses, production facilities, logistics centres and loading dock areas where protection of wide vehicle access points is required. Available as a two-leaf automatic gate for wider openings; a single-leaf alternative is offered separately.

Certifications
Product tested by TÜV Rheinland and supplied with a safety certificate; durability tests and annual production inspections are performed under TÜV supervision.

Technical specifications

• Model name: Traffic Gate Double Automatic
• Construction: two-leaf automatic safety gate
• Material: polymer (flexible polymer construction)
• Base section: optional stainless or galvanized steel
• Colour options: yellow and black
• Width (coverage): 4000 mm – 9000 mm
• Height: 1100 mm
• External fixing: M16 anchors
• Safety function: automatic stop when person or obstacle detected during closing
• Signalling: integrated LED warning lights; optional acoustic signals
• Control & detection options: manual push button, remote control, access card system, RFID, UWB, motion sensors, laser scanners, AI vision systems
• Integration: can be integrated with dock equipment and other external devices
• Certification: TÜV Rheinland certified
