Pedestrian gate SGA

automaticindustrialfor access control

Overview

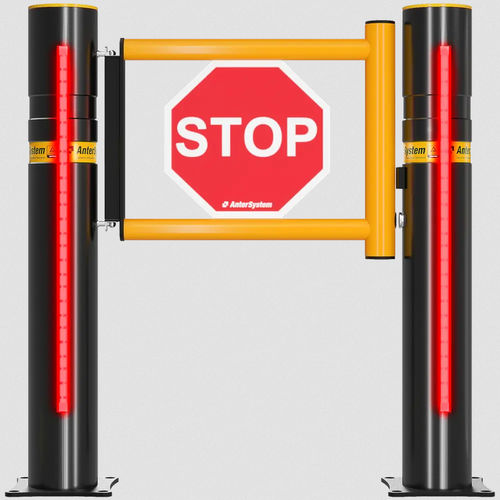

SGA Safety Gate with integrated STOP sign and visual warning light secures pedestrian crossings where footpaths intersect vehicle or industrial traffic routes. The unit is compatible with flexible safety barriers and PA bollards. Dimensions, opening direction and optional equipment can be configured to match site conditions and operational requirements. The gate clarifies pedestrian routes and reduces risk at crossing points.

Main features

• Integrated STOP plate combined with a visual warning signal (LED panels or lamp) to indicate gate status to vehicle operators
• Opening possible in one or both directions
• Optional automatic opening/closing mechanism
• Optional vehicle detection module that responds to forklift movement
• Compatible with flexible safety barriers and PA bollards for modular installation
• Designed to define clear pedestrian crossing points within mixed traffic areas

Technical data (summarised)

• Colour: yellow and black (base optional stainless or galvanised steel)
• Material: polymer body (base variants in stainless or galvanised steel available)
• Width range: 500–1200 mm
• Height: 1100 mm
• Application: controlled pedestrian access and marked crossing with visual signalling
• Internal fixing: M30 anchors
• External fixing: M12, M16 anchors
• Certification: TÜV Rheinland safety certificate; products subject to annual production inspections and durability tests

Notes

• Dimensions, opening direction and additional equipment can be customised for specific site layouts
• Visual signalling available as LED panels or lamp options
• Can be integrated with automatic barrier systems and detection equipment

Technical specifications

• Model / Series: SGA Safety Gate
• Material: polymer (optional stainless or galvanised steel base)
• Colour: yellow and black
• Width: 500–1200 mm
• Height: 1100 mm
• Internal fixing: M30 anchors
• External fixing: M12, M16 anchors
• Signalling: STOP plate + visual warning light (LED panels or lamp)
• Options: one- or two-direction opening, automatic opening/closing system, vehicle detection (forklift response)
• Certification: TÜV Rheinland tested and certified
