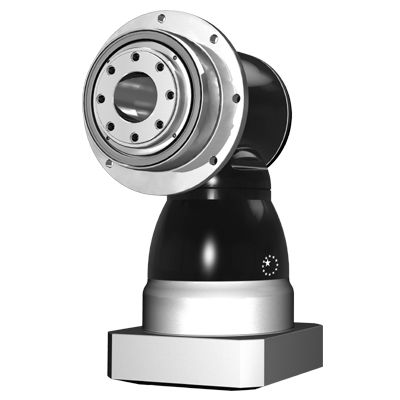

Hypoid gearbox KH series
coaxial200 - 500 Nm100 - 200 Nm

hypoid gearbox
hypoid gearbox
Add to favorites
Compare this product


Characteristics

Type
hypoid
Shaft orientation
coaxial
Torque
200 - 500 Nm, 100 - 200 Nm, 20 - 50 Nm, 50 - 100 Nm, 500 - 1000 Nm, 1 - 2 kNm, 10 - 20 Nm
Number of stages
single-stage
Performance
high-efficiency, low-noise, high-precision
Other characteristics
compact
Rotational speed

Min.: 1,500 rpm
(9,424.78 rad.min-1)

Max.: 6,000 rpm
(37,699.11 rad.min-1)

Backlash

0.05 °

Gear ratio

Min.: 3 unit

Max.: 10 unit

Description

- Innovative Hypoid Helical Bevel Gear - Optimized Inertia Moment - High Positioning Accuracy - High Efficiency - Low Noise - Long Service Life - Flexible Mounting - Multiple Output Types - Same Rotating Direction on Output as the Servo-Motor

Catalogs

KH/KFSeries
KH/KFSeries
20 Pages
KH/KFSeries
KH/KFSeries
20 Pages
