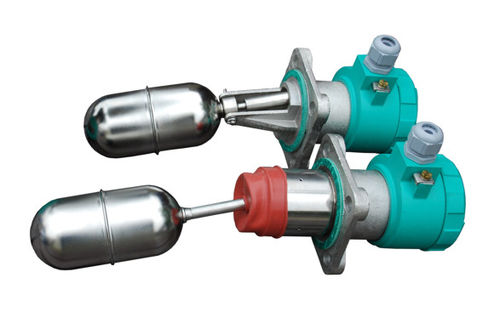

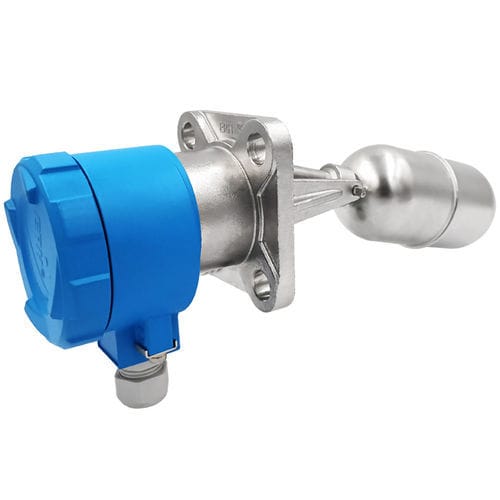

Magnetic float level switch ERH seriesfor liquidsATEXaluminum
Add to favorites
Compare this product
Characteristics
- Technology
- magnetic float
- Medium
- for liquids
- Approvals
- ATEX
- Material
- stainless steel, aluminum
- Mounting
- threaded, vertical, horizontal
- Other characteristics
- IP68, IP66, explosion-proof
- Process temperature
Max.: 70 °C
(158 °F)Min.: -25 °C
(-13 °F)- Process pressure
40 bar
(580.15 psi)
Description
Level switches are designed for signaling limit levels or two-state control of liquid levels in open and closed pressure vessels, in explosive atmospheres too. The switches can operate in aggressive liquids that do not affect 316/316Lstainless steel.
Reliable switching method
Horizontal or vertical mounting
Flanged connections 92x92 and DN80/ANSI 3”
Full stainless steel option
DNV, BV and PRS maritime certificates,
ATEX explosion-proof certificate and PZH hygienic certificate
