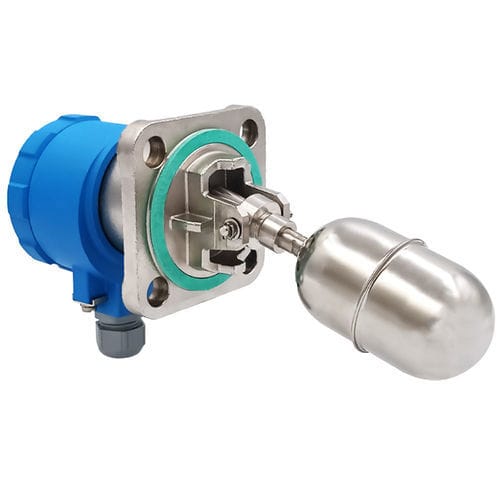

Magnetic float level switch ERH-series
floatfor liquidsfor tanks

Magnetic float level switch - ERH-series - APLISENS S.A. - float / for liquids / for tanks
Magnetic float level switch - ERH-series - APLISENS S.A. - float / for liquids / for tanks
Add to favorites
Compare this product
Go to the APLISENS S.A. website for more information

Characteristics

Technology
float, magnetic float
Medium
for liquids
Applications
for tanks, for hazardous locations, for marine applications
Approvals
ATEX
Material
stainless steel
Mounting
flange
Other characteristics
compact, IP68, IP66
Process temperature

Max.: 70 °C
(158 °F)

Min.: -25 °C
(-13 °F)

Process pressure

Max.: 2.5 MPa

Min.: 0.2 MPa

Description

Overview
ERH-SMALL float level switch designed for in-tank level detection with compact dimensions and standard flanged mounting.

Key features
  • Small in-tank dimensions for limited-space installations
  • Standard flanged mounting 92x92
  • Reliable magnetic switching mechanism
  • Multiple construction and protection options (fully stainless steel, IP66/IP68, ATEX)
  • Marine approvals available (DNV, PRS)

Documents and certifications (available)
  • Product data sheet (ERH-SMALL)
  • Declarations of Conformity ERH-xx-06/S, -07/S
  • Declarations of Conformity ERH-xx-16/S, -16.1/S
  • Marine Approval DNV
  • Marine Approval PRS

Usage / Notes
  • Designed as a float-type level switch for in-tank applications
  • Multiple configurations and ingress protection levels available to suit different environments

Technical specifications
  • Model: ERH-SMALL
  • Type: Float level switch (magnetic level switch family)
  • Mounting: Standard flanged mounting 92x92
  • Construction options: Fully stainless steel available
  • Ingress protection: Options include IP66 / IP68
  • Certifications / approvals: DNV marine approval; additional marine approvals (PRS)
  • Additional options: ATEX versions available
  • Available documentation: Product data sheet, Declarations of Conformity, Certificates
