- Power Transmission - Mechanical components
- Motor and Motor Control
- Stepper motor
- Applied Motion Products

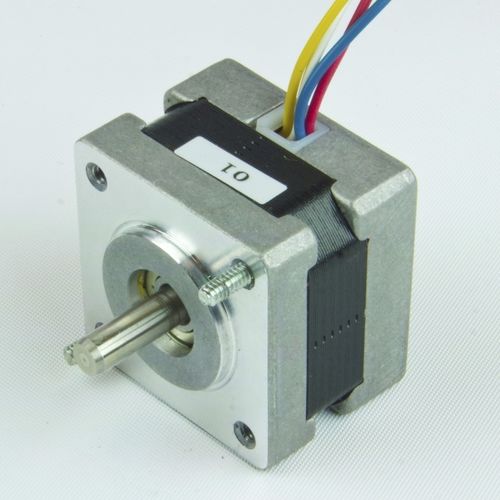

Two-phase stepper motor 5014 seriesaluminiumstainless steelcompact
Add to favorites
Compare this product
Characteristics
- Type
- two-phase stepper
- Configuration
- aluminium, stainless steel, compact
- Other characteristics
- motion control, NEMA 14
- Intensity
0.35 A, 0.6 A, 1 A
- Torque
0.049 Nm, 0.063 Nm, 0.17 Nm
(0.036141 ft.lb, 0.046466 ft.lb, 0.125386 ft.lb)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 50 °C
(122 °F)
Description
• 50 pc MOQ
• 2-phase hybrid step motor
• Standard NEMA 14 dimensions
The 5014-020 two-phase stepper motor is suitable for a wide range of motion control applications.
Optional Planetary Gearheads
This step motor is available with a factory-installed planetary gearhead for applications requiring additional torque. PH gearheads feature an all-steel gear train, stainless steel housing, and aluminum front and rear flanges for maximum durability.
Catalogs
No catalogs are available for this product.
See all of Applied Motion Products‘s catalogsOther Applied Motion Products products
Stepper Motors
