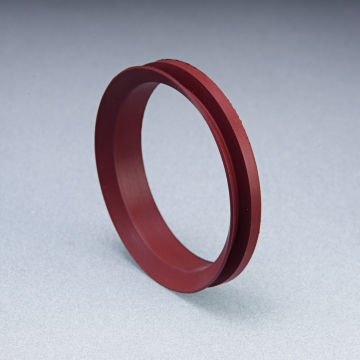

Lipped seal 11.5216 seriessynthetic fiberV
Add to favorites
Compare this product
Characteristics
- Type
- lipped
- Material
- synthetic fiber
- Configuration
- V
- Temperature limit
Max.: 150 °C
(302 °F)Min.: -20 °C
(-4 °F)- Pressure limit
Max.: 2,000 Pa
(0.3 psi)Min.: 0 Pa
(0 psi)
Description
On request:Wave range >630 mm
Material:FKM
Material sealing element:
Compound designation A+P:FKM 60.45-01
Working temperature:from -20 to +150 °C
Hardness:60 ±5 Shore A
Peripheral speed:max. 12 m/s
Pressure:max. 0.02 MPa
Medium stability:for application in mineral and synthetic oils and fats, fuels and heating oils
Attention:If the measure of in the border area between two V-ring size is, the larger ring is chosen
