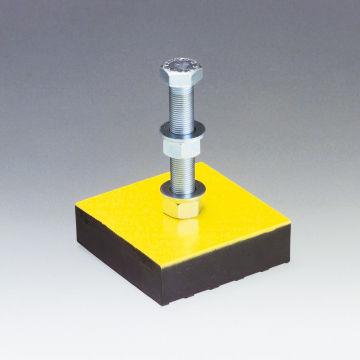

Machine foot 12.2024.01 seriesgalvanised steelanti-vibrationleveling
Add to favorites
Compare this product
Characteristics
- Applications
- machine
- Material
- galvanised steel
- Type
- anti-vibration, leveling
- Other characteristics
- threaded
- Load capacity
Max.: 6,000 kg
(13,227.7 lb)Min.: 100 kg
(220.5 lb)
Description
Material bottom:CR, black
Material cover plate:S235JR
Material mounting part:S235JR
Surface treatment:yellow lacquered
Version:Support surface ribbed, incl. threaded bolt.
Application:HPS machine mountings are suited for slip resistant set up and alignment of machines and devices of all kind.
Surface treatment (2):galvanized
Product description:Suitable for impact sound absorption and oscillation insulation
Natural frequency:> 15 Hz
EU guidelines:2002/95/EC (RoHS)
Working temperature:from -30 to +80 °C
Note:when used with leveling the lowest load capacity values are valid
