Piston pump DM series
for wastewaterwith electric motorpower priming

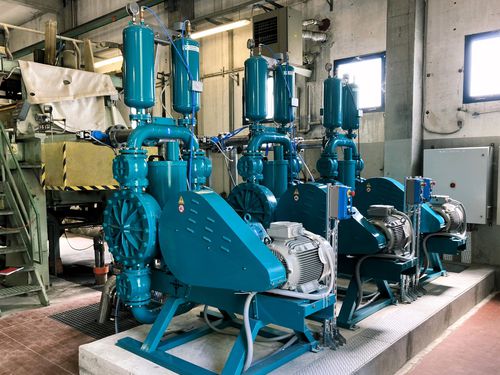

Piston pump - DM series - Aqseptence Group - for wastewater / with electric motor / power priming

Piston pump - DM series - Aqseptence Group - for wastewater / with electric motor / power priming - image - 2

Piston pump - DM series - Aqseptence Group - for wastewater / with electric motor / power priming - image - 3

Piston pump - DM series - Aqseptence Group - for wastewater / with electric motor / power priming - image - 4

Piston pump - DM series - Aqseptence Group - for wastewater / with electric motor / power priming - image - 5

Piston pump - DM series - Aqseptence Group - for wastewater / with electric motor / power priming - image - 6

Add to favorites

Compare this product

Characteristics

Technology

piston

Fluid

for wastewater

Operation

with electric motor

Priming

power priming

Mobility

stationary

Domain

industrial

Applications

extraction

Material

metal

Fluid specification

for corrosive fluids, for heavy fluids

Other characteristics

small, recessed, medium-sized

Flow

Max.: 30 m³/h
(1,059.44 ft³/h)

Min.: 0 m³/h
(0 ft³/h)

Pressure

Max.: 16 bar
(232.06 psi)

Min.: 0 bar
(0 psi)

Power

Max.: 18.5 kW
(25.15 hp)

Min.: 1.5 kW
(2.04 hp)

Input diameter

2.5 in, 65 in
(2.559 in)

Output diameter

2.5 in, 65 in
(2.559 in)

Length

Max.: 2,100 mm
(83 in)

Min.: 860 mm
(34 in)

Width

400 mm, 420 mm, 480 mm, 920 mm, 950 mm
(15.75 in, 16.54 in, 18.9 in, 36.22 in, 37.4 in)

Height

1,380 mm, 1,440 mm, 1,455 mm, 1,480 mm, 2,530 mm
(54.33 in, 56.69 in, 57.28 in, 58.27 in, 99.61 in)

Weight

Max.: 1,400 kg
(3,086.47 lb)

Min.: 46 kg
(101.41 lb)

Description

Diemme® Filtration’s range of pumps has been synonymous with reliability and high performance for over 40 years. With established know-how and a constant focus on innovation, our pumps are the ideal solution for optimizing filtration processes in the most demanding industries. Our piston and piston-membrane pumps are designed and sized to ensure efficient and safe operation in small and medium-sized filter presses with recessed plates. Due to their robustness and precise construction, these pumps ensure high wear resistance and long operational life, enabling filtration processes to achieve the desired performance and productivity. In order to offer comprehensive support to our customers, Diemme® Filtration guarantees the constant availability of original spare parts and a specialized technical support service that can intervene quickly anywhere in the world. Our commitment is to ensure operational continuity and maximum efficiency, accompanying each customer with customized solutions and excellent after-sales support.
