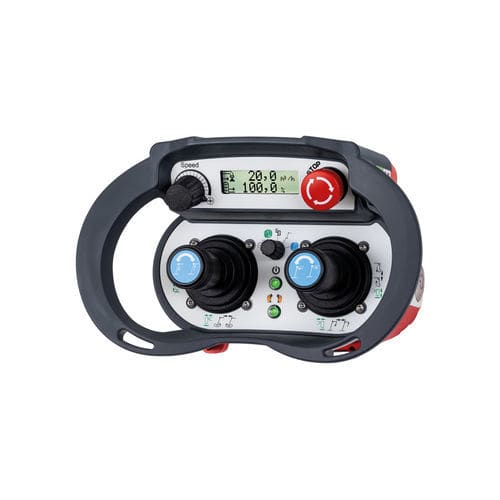

Radio control T3

joystickwith toggle switchwith configurable buttons

The T3 transmitter is a configurable industrial radio control device for operating machinery and systems. It can be equipped with toggle switches, pushbuttons or joysticks offering digital or analogue functions. LED indicators and an optional 2.1" graphic display deliver clear status and operational information.

Tested according to

• EN ISO 13849
• EN 60204-32
• EN 62061
• EN 62745
• DNV

Technical data

• Protection class: IP65
• Temperature range: -20 to +60 °C
• Weight: approx. 1400 g
• Dimensions (W/D/H): 220 x 140 x 150 mm
• Frequency range: 432-481 / 863-930 MHz; 2.4 GHz
• Battery technology: exchangeable NiMH
• Operating time: up to 20 hours
• Operating range: > 100 m

Options

• STOP Cat. 3 PLe / SIL3
• Safe digital control functions up to Cat. 3 PLe / SIL3
• Safe analogue control functions up to Cat. 3 PLe / SIL3
• LED feedback
• 2.1" graphic display
• Tilt sensor
• Presence sensor
• Vibration alarm
• Control panel lighting
• Cable control with optional charging function
• CAN cable control
• Multi-operation
• User-defined switch-off time
• Customised labelling
• Bottom housing available in red, blue or grey
• Shoulder hook
• Shoulder cross belt
• Belly belt
• Neck belt

Ergonomic design and flexible configuration
The T3 is designed for comfortable handling during extended use and for flexible configuration to match specific control tasks. The housing and internal layout allow a wide variety of operator elements to be fitted to meet application requirements.

Optional 2.1" graphic display for a better overview
The optional 2.1" graphic display presents operating data and status messages in a compact, readable format, supporting efficient and safe operation in more complex workflows.

Versatile and future-proof
The T3 transmitter is suitable for crane, construction, conveyor and heavy industry applications. Hardware and software expansion options allow adaptation to future requirements, protecting long-term investment.
