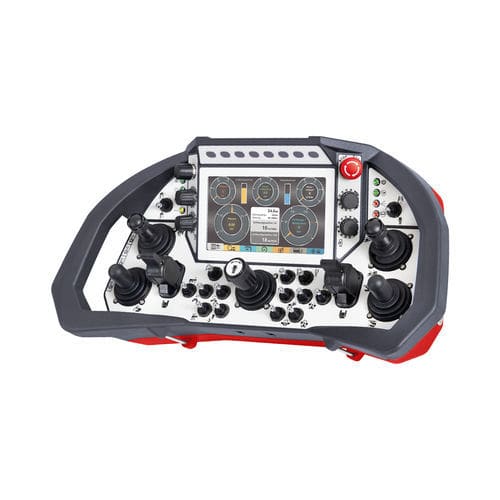

Radio control T9

joystickwith toggle switchwith configurable buttons

The T9 is the largest joystick transmitter of the T series, providing ample space for the arrangement of all control elements. It can be equipped with a wide range of joysticks and linear levers. Customers can choose from four color graphic displays, the largest display (7.0“, 800 x 480 pixels) can be programmed via Qt. Two battery compartments allow uninterrupted battery replacement, and the separately available shoulder hook ensures optimal carrying comfort.

Tested according to:
• EN ISO 13849
• EN 60204-32
• EN 62061
• EN 62745
• DNV

Technical data:
• Protection class: IP65
• Temperature range: -20 to +60 °C
• Weight: approx. 2500 g
• Dimensions (W/D/H): 500 x 250 x 175 mm
• Frequency range: 432–481 / 863–930 MHz; 2.4 GHz
• Battery technology: replaceable Li-Ion battery
• Operating time: up to 20 hours
• Range: >100 m

Options:
• STOP Cat. 3 PLe / SIL3
• Safe digital control functions up to Cat. 3 PLe / SIL3
• Safe analog control functions up to Cat. 3 PLe / SIL3
• LED feedback
• Graphic display 2.1“
• Graphic display 2.8“
• Color graphic display 3.5“ freely programmable via Qt
• Color graphic display 4.3“ freely programmable via Qt
• Color graphic display 7.0“ freely programmable via Qt
• Keyboard foil with 8 softkeys and 4 LEDs (RG)
• Video transmission from up to 4 cameras in real-time
• Picture-in-picture video function
• Brightness sensor
• Tilt sensor
• Presence sensor
• Vibration alarm
• Control panel illumination
• CAN cable control
• Multi-operation
• Uninterrupted battery replacement
• Custom shutdown time
• Custom labeling
• Housing bottom in red, blue, or grey
• Shoulder hook
• Waist strap
