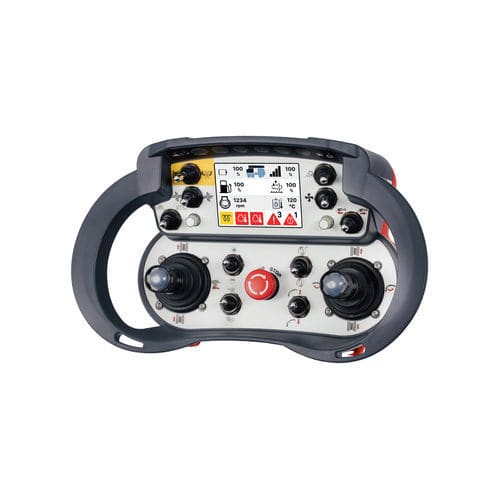

Radio control T5

joystickwith toggle switchwith configurable buttons

The T5 transmitter stands out due to its balanced size, providing ample space for a wide range of control elements and information sources. The freely programmable GDC-3.5 color graphic display can be optionally integrated, allowing clear visualization of operational and status information.

Certified according to:
• EN ISO 13849
• EN 60204-32
• EN 62061
• EN 62745
• DNV

Technical Data:
• Protection class: IP65
• Temperature range: -20 to +60 °C
• Weight: approx. 1800 g
• Dimensions (W/D/H): 290 x 180 x 155 mm
• Frequency range: 432–481 / 863–930 MHz; 2.4 GHz
• Battery type: replaceable NiMH or Li-Ion
• Operating time: up to 20 hours
• Range: > 100 m

Options:
• STOP Cat. 3 PLe / SIL3
• Safe digital control functions up to Cat. 3 PLe / SIL3
• Safe analog control functions up to Cat. 3 PLe / SIL3
• LED feedback
• 2.1" graphic display
• 2.8" graphic display
• 3.5" color graphic display, freely programmable via QT
• Keypad foil with 6 softkeys and 4 LEDs (RG)
• Real-time video transmission from up to 4 cameras
• Brightness sensor
• Tilt sensor
• Presence sensor
• Vibration alarm
• Control panel lighting
• Wired control with optional charging function
• CAN wired control
• Multi-mode operation
• User-defined shutdown time
• Custom labeling
• Bottom housing in red, blue, or gray
• Shoulder hook
• Shoulder harness
• Waist belt
• Neck strap

Compact and powerful control solution
The T5 transmitter combines a compact design with high functionality, developed for demanding control applications. Its ergonomic design ensures comfortable operation even during extended use. Various control elements such as switches, buttons, or joysticks can be integrated flexibly.

Optional color graphic display and video transmission
The optional color graphic display presents operational data and status messages in a clear and structured way. Additionally, real-time video transmission from up to four cameras provides visual feedback during operation and supports safe control of complex applications.

Customizable and robust
The T5 transmitter is configured according to customer requirements and can be precisely adapted to the specific application. Its robust design ensures reliable operation even under challenging conditions and allows for long-term expansion.
