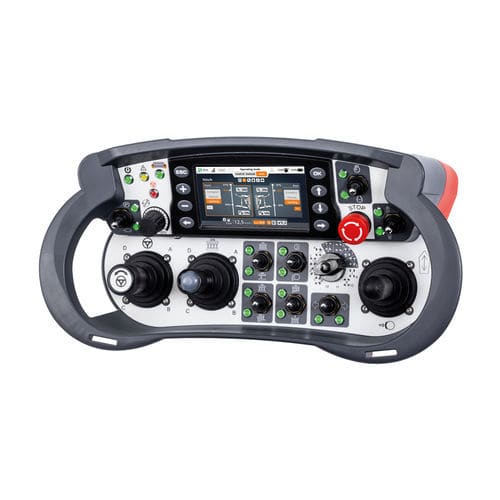

Radio control T7

joystickwith toggle switchwith configurable buttons

The T7 transmitter offers numerous options for positioning control elements. On request, a color graphic display up to 4.3“ with optional video feedback can be installed. This allows operators to monitor not only the status but also the working area of their machine at all times.

Tested according to:
• EN ISO 13849
• EN 60204-32
• EN 62061
• EN 62745
• DNV

Technical Data:
• Protection class: IP65
• Temperature range: -20 to +60 °C
• Weight: approx. 2000 g
• Dimensions (W/D/H): 370 x 185 x 170 mm
• Frequency range: 432–481 / 863–930 MHz; 2.4 GHz
• Battery technology: interchangeable battery, NiMH or Li-Ion
• Operating time: up to 20 hours
• Range: > 100 m

Options:
• STOP Cat. 3 PLe / SIL3
• Safe digital control functions up to Cat. 3 PLe / SIL3
• Safe analog control functions up to Cat. 3 PLe / SIL3
• LED feedback
• 2.1" graphic display
• 2.8" graphic display
• 3.5" color graphic display, freely programmable via QT
• 4.3" color graphic display, freely programmable via QT
• Membrane keypad with 8 softkeys
• Real-time video transmission from up to 4 cameras
• Picture-in-Picture video transmission
• Brightness sensor
• Tilt sensor
• Presence sensor
• Vibration alarm
• Control panel illumination
• Wired control with optional charging function
• CAN wired control
• Multi-mode operation
• User-defined shutdown time
• Custom labeling
• Bottom housing in red, blue, or gray
• Shoulder hook
• Cross shoulder harness
• Waist belt
• Neck strap

Versatile transmitter design for complex applications
The T7 transmitter is a highly developed control solution for demanding applications. Its thoughtful design ensures precise control and high durability. Various joysticks, buttons, and switches allow flexible adaptation to individual user requirements.

Optional enhancements for increased usability
Optionally, the T7 transmitter can be equipped with a high-resolution color graphic display, providing clear and intuitive visualization of all important information. Integration of up to four cameras allows real-time video feedback for full situational awareness.

Customizable solutions for maximum efficiency
Like all ARCON devices, the T7 transmitter is configured according to customer specifications, resulting in a flexible solution tailored to different applications while combining performance, safety, and user-friendliness.
