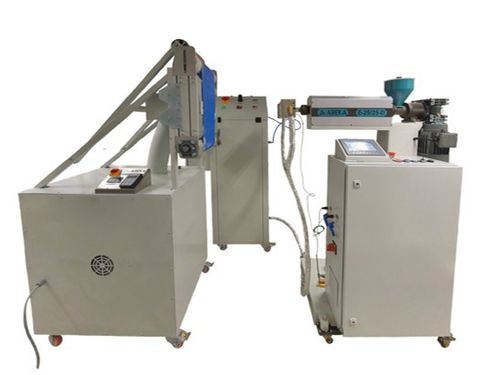

Laboratory extrusion line ARK-MB-S06

tubefor PPfor PE

Overview
Lab-scale melt blowing line for micro- and nanofiber nonwovens. Produces meltblown media for filtration, sorbents and technical textiles with industrial throughput and lab-grade fiber control.

Key features

• Lab-scale melt blowing line optimized for micro‑ and nanofiber nonwovens
• Screw diameter: 30 mm
• L/D ratio: 22
• Die width: 200 mm
• Max. operating temperature (system / air unit): 300 °C
• Screw speed: up to 50 rpm (max)
• Operating pressure (extrusion): 750 bar
• Processable polymers: PE, PP
• MB Die: 4 rows, capillary number 200, air plate angle 60°, air gap 0.3 mm
• Air Heating Unit: pressure 5 bar; max. operating temperature 300 °C; dimensions (L×W×H): 1000 × 550 × 1400 mm; weight: 400 kg
• Technical requirements (system footprint with air heating unit excluded): 2600 × 1000 × 1600 mm
• Power: Triphase 380 V, 45 A (3P+N+E)

Applications

• Filtration media — continuous meltblown webs for face mask, HVAC and industrial filtration converters
• Insulation & acoustic — lightweight nonwovens for automotive cabin acoustics and high-loft thermal layers
• Wipes & medical — PE/PP webs for medical wipes, drapes and absorbent substrates
• Battery separator R&D — microfiber web substrates for early-stage separator and energy-storage research

Notes
Representative figures. Production specifications confirmed in writing per project. Drawings and electrical schematics are provided with confirmed orders upon project documentation.

Technical specifications

• Screw diameter: 30 mm
• L/D: 22
• Screw speed: 50 rpm (max)
• Operating pressure (extrusion): 750 bar
• Processable polymers: PE, PP
• Die width: 200 mm
• Capillary number (MB Die): 200
• Air plate angle: 60°
• Air gap: 0.3 mm
• Air Heating Unit pressure: 5 bar
• Air Heating Unit max. operating temperature: 300 °C
• Air Heating Unit dimensions (L×W×H): 1000 × 550 × 1400 mm
• Machine weight: 400 kg
• Dimensions (air heating unit excluded): 2600 × 1000 × 1600 mm
• Power: Triphase 380 V, 45 A (3P+N+E)
