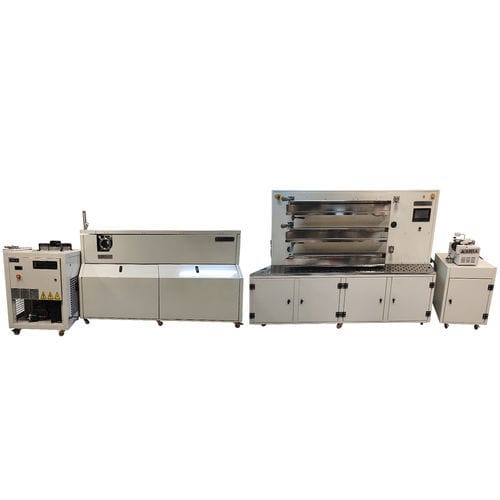

Spinning extruder ARK-WS-D03
single screwacrylicpiston

Spinning extruder - ARK-WS-D03 - Areka Filtration Technologies Ltd. - single screw / acrylic / piston
Spinning extruder - ARK-WS-D03 - Areka Filtration Technologies Ltd. - single screw / acrylic / piston
Add to favorites
Compare this product
Go to the Areka Filtration Technologies Ltd. website for more information

Characteristics

Number of screws
single screw
Treated material
acrylic
Other characteristics
spinning, piston
Temperature

Max.: 100 °C
(212 °F)

Min.: 20 °C
(68 °F)

Overall length

5,000 mm
(197 in)

Overall width

800 mm
(31 in)

Total height

1,200 mm
(47 in)

Weight

500 kg
(1,102 lb)

Power

16 kW
(21.75 hp)

Description

Dosage • Feed rate (piston pump) : 0.1-500 mL/min • Feed rate (peristaltic pump) : 0.1-500 mL/min • Resolution : 0.1 mL/min • Control : Controlled from separate touch screen Spin Pack • Composition : Stainless steel or Tantalum • Number of holes : 25-100 • Coagulation Bath • Volume : 80 L • Temperature : 10-70 ˚C Washing and Drying Units • Temperature : 20-100 ˚C • Air circulation : Available for dryers • Godet speed : 200 m/min, max. • Godet temperature : Unheated, room temperature Winder • Speed : 200 m/min, max • Winding angle : 30° Technical Requirements • Dimensions (LxWxH) : 5000 x 800 x 1200 mm3 • Weight : 500 kg • Power : 380-480 V, 16kW max.
