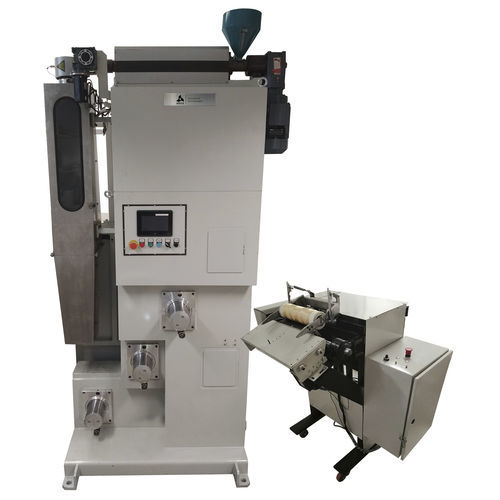

Spinning extruder ARK-MS-T04single screwfor hot-melt
Add to favorites
Compare this product
Characteristics
- Number of screws
- single screw
- Treated material
- for hot-melt
- Other characteristics
- spinning
- Output
Max.: 15 kg/h
(33.0693 lb/h)Min.: 3 kg/h
(6.6139 lb/h)- Screw length
30 mm
(1 in)- Temperature
Max.: 150 °C
(302 °F)Min.: 20 °C
(68 °F)- Overall length
4,000 mm
(157 in)- Overall width
1,000 mm
(39 in)- Total height
2,850 mm
(112 in)- Weight
500 kg
(1,102 lb)- Power
10 kW
(13.6 hp)
Description
Extrusion
• Feed rate : 3-15 kg/h
• Resolution after gear pump : 1.0 g/min
• L/D : 30
• D : 30
• Max extruder temperature : 350°C
• Control : Main touch screen
Spin Pack
• Composition : Stainless steel
• Holes : Circular, Ø0.5-2.0 mm
• Number of holes : 1-100
Quenching
• Length : 100 cm
• Air temperature : 15-30˚C
• RH : 25-70%
• Control : Main touch screen
Drawing Units
• Godet speed : 3,000 m/min, max
• Godet temperatures : 20-150°C
• Control : Touch screen
Winder
• Speed : 3,000 m/min, max
• Control : Separate buttons
Technical Requirements
• Dimensions (LxWxH) : 4000 x 1000 x 2850 mm3
• Weight : 500 kg
• Power : 380 V triphase; 10 kW max.
• Air suction : Required for yarn guide-winding
