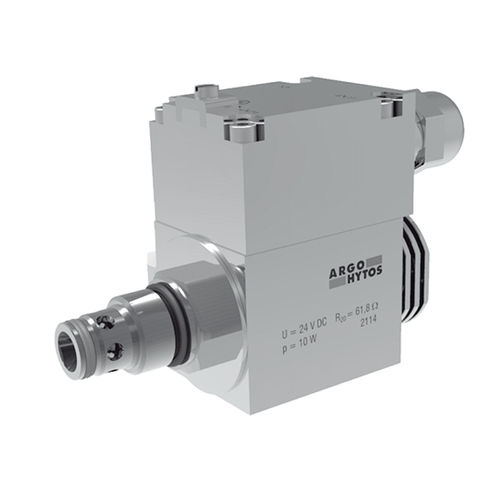

Poppet hydraulic directional control valve SD3EX-B2manual2/2-way
Add to favorites
Compare this product
Characteristics
- Type
- poppet
- Actuating method
- manual
- Ports/positions
- 2/2-way
- Operating pressure
Min.: 0 bar
(0 psi)Max.: 420 bar
(6,092 psi)- Flow rate
Min.: 0 l/min
(0 us gal/min)Max.: 75 l/min
(20 us gal/min)
Description
Explosion-proof 2/2 Directional Valve, Solenoid Operated, Poppet-Type, Piloted
7/8-14 UNF • Qmax 75 l/min (20 GPM) • pmax 420 bar (6100 PSI)
Valve and solenoid design prevents a surface temperature capable of igniting
Solenoid coil in acc. with directive 94/9/EC (ATEX) for explosion-hazard zones
Explosion protection for gas, dust, and mining; solutions for all zones
Solenoid with encapsulated enclosure
Hardened precision parts
High flow capacity, transmitted hydraulic power and leak-free closing up to 3 drops/min
All ports may be fully pressurised
Wide range of manual overrides available
Coils interchangeable within Argo-Hytos ATEX/IECEx product line
In the standard version, the valve is zinc-coated for 520 h protection acc. to ISO 9227
