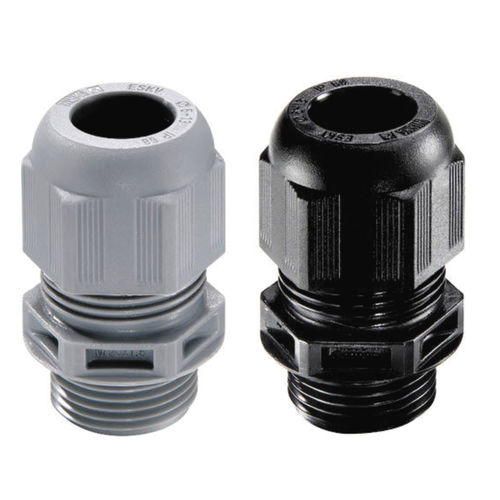

Polyamide cable gland HSK series
IP68halogen-freeUV-resistant

Polyamide cable gland - HSK series - Arihant Panel Fittings Private Limited - IP68 / halogen-free / UV-resistant
Polyamide cable gland - HSK series - Arihant Panel Fittings Private Limited - IP68 / halogen-free / UV-resistant
Add to favorites
Compare this product

Characteristics

Material
polyamide
Protection level
IP68, halogen-free, UV-resistant, fire-resistant
Other characteristics
PG thread, metric, halogen-free, hexagonal, high-temperature, for railway applications, cadmium-free
Cable diameter

Min.: 3 mm
(0.12 in)

Max.: 44 mm
(1.73 in)

Operating temperature

Min.: -40 °C
(-40 °F)

Max.: 120 °C
(248 °F)

Description

Nylone Cable Gland Material: Polyamide, sealing: modified rubber Color: Greywhite (RAL 7035) Black (RAL 9005) Protection degree: Using suitable O-sealing within the clamping range it protection degree can reach Ip68 Temperature Range: Min-40°C, Max 100°C, Short-term 120°C Properties: V2 (UL 94), free of halogen, phosphor and cadmium, passed RoHS UV-resistance, ageing resistance certificates
