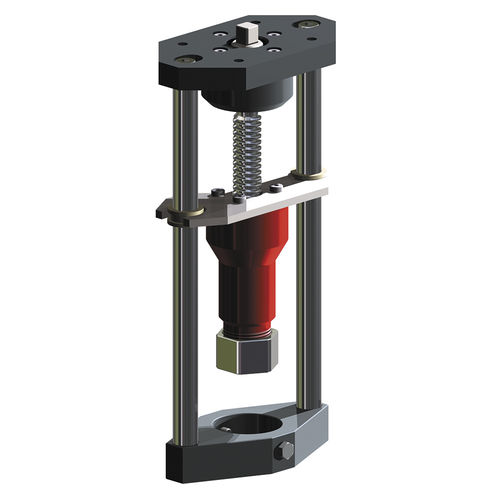

Electric valve actuator Ventaris
manuallinear

electric valve actuator
electric valve actuator
electric valve actuator
electric valve actuator
electric valve actuator
Add to favorites
Compare this product


Characteristics

Type
electric, manual
Movement
linear
Actuator force

Max.: 6,000 N

Min.: 1,000 N

Description

Ventaris Modular design — you have the choice The Ventaris offers a variable concept Due to the diverse requirements in the automation of valves, the Ventaris features a design in which the valve unit is separated from the actuator head by means of a standard interface. This allows you to choose an actuator head that is adapted to your requirements. You can decide either for the electronically controlled precision actuator Tensor (Ventaris TE) with freely programmable force and / or path shut-off and convenient programming via buttons, or for the classic Nano+ (Ventaris N+) with path shut-off, synchronous motor and control cam. All available options for the Tensor and Nano+ series can, of course, also be used in the Ventaris. The separation of the actuator and the valve unit allows you to retrofit a conventional solution with path shut-off to a fully electronic version with path and / or force shut-off. This means you will be equipped for the future, without having to replace the valve unit. Tensile and shearing forces up to 6000 N Stroke length up to 50 mm
