Diaphragm pump PD03P-XXS-XXX
waterfor chemicalsfor food products

diaphragm pump
diaphragm pump
diaphragm pump
Add to favorites
Compare this product


Characteristics

Media
water, for chemicals, for food products, for lubricants
Operation
pneumatic
Technology
diaphragm
Domain
industrial, medical
Applications
for automatic machines, handling, for hazardous locations, transfer, for printing machines
Material
PVDF, polypropylene, plastic, PTFE
Fluid specification
for abrasive fluids, for hazardous fluids
Protection level
ATEX, hazardous-duty, abrasion-resistant, chemical-resistant
Other characteristics
OEM, compact, sensor, for circuits, suction, wall-mounted, standard, corrosion-proof, with seal, for harsh environments, small, double, small-size
Flow

Max.: 40.1 l/min (10.5933 us gal/min)

Min.: 0 l/min (0 us gal/min)

Pressure

Max.: 6.9 bar (100.076 psi)

Min.: 0 bar (0 psi)

Description

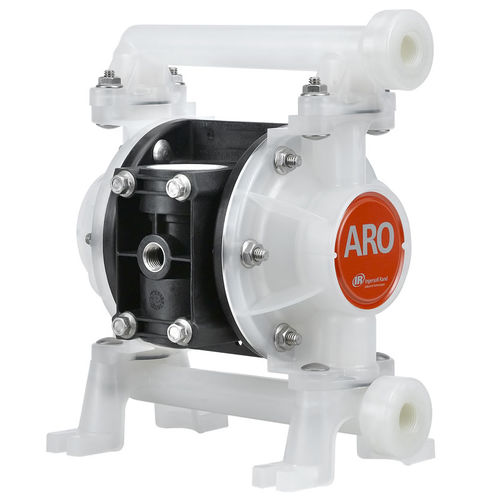

3/8” non-metallic diaphragm pump The ARO nonmetallic 3/8” PD03P-XXS-XXX compact pump is a favorite of OEMs everywhere around the world. It is designed to be fully corrosion resistant. It has a polypropylene body, stainless steel fasteners and polypropylene, groundable acetal or PVDF casing materials. It features a Simul-Shift valve technology that allows very reliable and ultra-positive signal. The unique ARO unbalanced valve integrated in this pump allows no stalls in operations. The outlet manifold is adjusted to your exact needs and it comes in three versions: center, dual inlet and end. The modular design allows easy and comfortable use and maintenance and the bolted construction prevents any fluid leakage. This pump can use a wide variety of accessories, including wall mount bracket, cycle counter kit, an air line connection kit with piggyback filter, regulator, pipe nipple and 5 sections of hose, cycle actuation kit and fluid section service kit. The diaphragm is available in four materials: Hytrel, PTFE with Santropene backer, Santropene and Viton.
