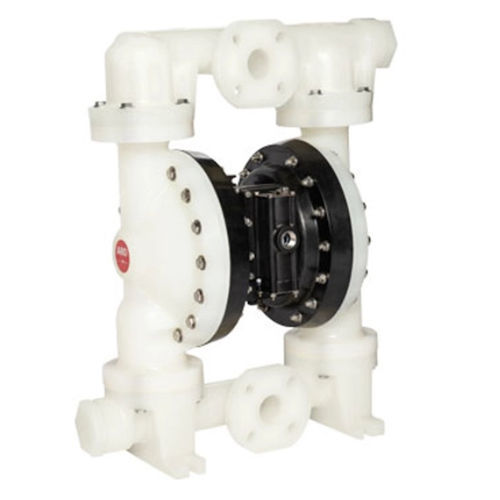

Diaphragm pump PX20P-XXX-XXX

waterwastewaterfor chemicals

ARO EXP 2” non-metallic pumps achieve flow rates of up to 184 GPM (696.4 LPM) and offer a wide array of material and porting configurations. 2” non-metallic pumps are often used for transfer, filling, recirculation and batching in Chemical, Industrial and Water/Wastewater treatment markets. Available with Long-life PTFE diaphragms. Features Up to 4 times the life of traditional diaphragm pumps due to the EXP's convoluted diaphragm design Efficiency - Simul-Shift™ valve provides ultra-positive, reliable shift signal Reliability - ARO's patented 'Unbalanced' air valve ensures no-stall operation Versatility - Broad range in materials of construction for optimum fluid compatibility Environmentally Sound - Bolted construction for leak-free fluid handling and ribless fluid caps to eliminate cracking Serviceability - Easier service through modular design Accessories 66312 Air Line Connection Kit: contains Piggyback Filter / Regulator, pipe nipple & 5’ section of hose 67237 Diaphragm Failure Detection Kit 67350 Cycle Counter Kit 67323 Continuous-Duty Muffler 67341-E20N Flange Connection Kit 637369 Air Section Service Kit 637373-XX Fluid Section Service Kit Pump Casing Materials PVDF (Kynar) Polypropylene Conductive PVDF Conductive Polypropylene
