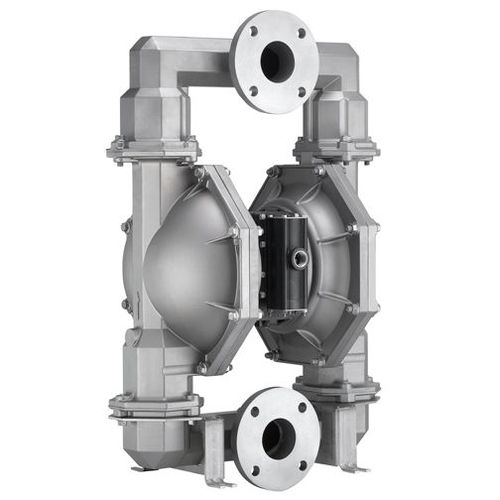

Diaphragm pump PX30X-XXX-XXX-C 3''
paintfuel oilair-driven

diaphragm pump
diaphragm pump
diaphragm pump
Add to favorites
Compare this product


Characteristics

Fluid
paint, fuel oil
Operation
air-driven
Technology
diaphragm
Domain
for the chemical industry, for oil industry applications
Applications
suction, handling, recirculation, transfer, filling
Material
aluminum, stainless steel, cast iron, PTFE
Other characteristics
heavy-duty
Flow

Max.: 1,250 l/min (330.21507 us gal/min)

Min.: 0 l/min (0 us gal/min)

Pressure

Max.: 8 bar (116.03 psi)

Min.: 1 bar (14.504 psi)

Description

3” metallic air operated diaphragm pump The ARO metallic 3” PX30X-XXX-XXX diaphragm pump is a favorite of OEMs everywhere around the world. It is designed to be fully corrosion resistant. It features a Simul-Shift valve technology that allows very reliable and ultra-positive signal. The unique ARO unbalanced valve integrated in this pump allows no stalls in operations. The outlet manifold is adjusted to your exact needs and it comes in three versions: center, dual inlet and end. The modular design allows easy and comfortable use and maintenance and the bolted construction prevents any fluid leakage. Adjudged to have the best 'total cost of ownership' in the industry, the EXP is around 20 -40% more efficient than its competitors. The maintenance of this unit is simple, due to its modular design.

VIDEO
