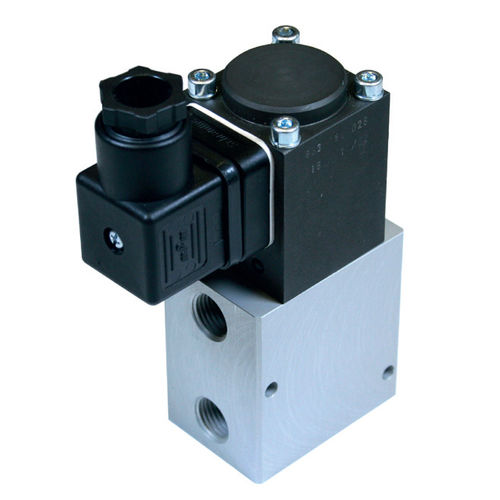

Proportional valve ASCO 602
plugpneumaticpressure-control

proportional valve
proportional valve
Add to favorites
Compare this product

Go to the ASCO website for more information

Characteristics

Type
plug
Operation
pneumatic
Function
pressure-control
Media
for gas, for air
Body
modular, stainless steel, brass, aluminium, anodized aluminum, NBR
Number of channels
3/2-way
Other characteristics
high-temperature, proportional
DN

0.25 in, 0.5 in, 1 in

Pressure

10.3 bar, 34.5 bar
(149.4 psi, 500.4 psi)

Temperature

Min.: -10 °C
(14 °F)

Max.: 60 °C
(140 °F)

Description

The ASCO Series 602 are proportional valves without integrated control electronics. The valves can be used in an open control loop with a control unit or in a closed control loop with a CONTROLD control device and an external sensor. A modular arrangement of the individual components (proportional valve, control device, sensor) can be of advantage in special applications such as high ambient temperature environments. Specifications Port Type G ISO228/1-G BSPP Voltage 24 DC Standards / Regulations RoHS, IEC 60529 (Ingress protection), IP65 Operating Environment Hazardous, Indoor Features Handles lubricated or unlubricated air or neutral gas Anodised aluminium body with stainless steel and brass internal parts and NBR seals Mountable in any position
