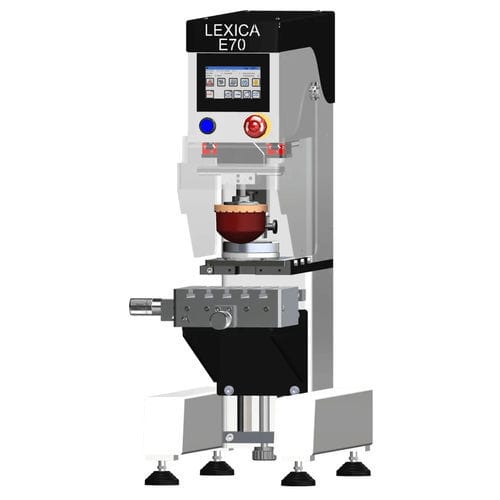

Monochrome pad printing machine LEXICA E70
with closed ink cupautomaticfor industrial applications

monochrome pad printing machine
monochrome pad printing machine
monochrome pad printing machine
Add to favorites
Compare this product


Characteristics

Type
with closed ink cup
Control
automatic
Number of colors
monochrome
Domain
for production, for industrial applications
Other characteristics
high-quality, high-performance, high-rate
Printing speed

2,000 p/h

Printing force

1,350 N

Description

cutting-edge pad printing machine, designed to improve quality and efficiency standards in industrial applications. Perfect for those looking for a high quality print. Main characteristics: • Benchtop configuration • Single color printing for applications that require maximum quality • Brushless motors for superior precision and high printing force • High level performance for efficient production • Advanced connectivity for easy integration into your workflow Technical Specifications For Benchtop Configuration • Max number of colours: 1 • It can fit both circular and oval glasses • Max print diameter: Ø 80 mm • Max glasses size: Ø 90 (circular) – 135×70 mm (oval) • Max cliché size: 140×210 mm • Horizontal stroke/blade: 110 mm • Vertical travel: 145 mm • Max pad height: 100 mm • Drive: Electronic • Power supply: 230V 50-60 Hz • Weight: 90 kg • Average energy consumption: 0.7 kWh • A configuration without the column is available Standard Color Setup Configuration • 1 color Ø 60 (1) – Ø 90 (1) – 70×135 (1)
