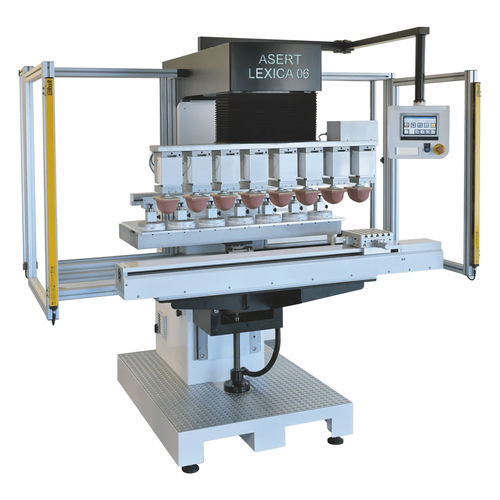

Ten-color pad printing machine LEXICA 06

with hermetic ink cupsemi-automatic4-color

cutting-edge pad printing machine, designed to improve quality and efficiency standards in industrial applications. Perfect for those looking for a high quality print. Main characteristics: • Print up to 10 colors for applications requiring maximum quality • Brushless motors for superior precision and high printing force • High level performance for efficient production • Advanced connectivity for easy integration into your workflow Technical Specifications • Available with 2 types of setup for positioning the glasses: Trays or Cliché Plate • Max number of colours: 10 • It can fit both circular and oval glasses. • Max print diameter: Ø 245 mm • Max glasses size: Ø 250 (circular) – 350 x 115 mm (oval) • Max cliché size: 260×570 mm • Doctor stroke: 300 mm • Horizontal stroke: 430 mm • Vertical stroke: 230 mm • Max buffer height: 300 mm to 350 mm • Drive: Electronic • Power supply: 400V 50-60 Hz • Weight: 1100 kg • Average energy consumption: 4.5 kWh • Different sized guards available based on the machine configuration • layout with protections for 1200 stroke linear index configuration Standard Color Setup Configuration • 4 colors Ø 250 • 6 colors Ø 160 • 10 colors Ø 90 • 5 colors Ø 200 • 7 colors Ø 135
