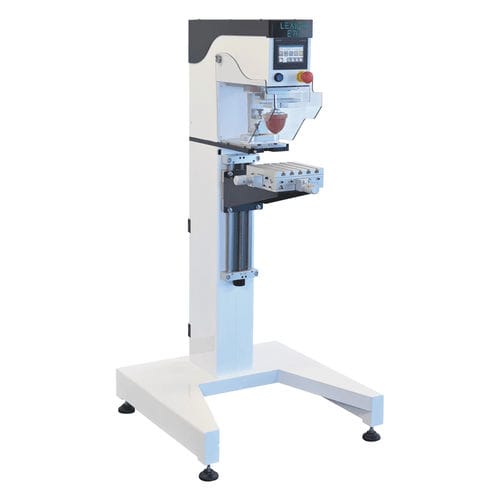

Monochrome pad printing machine LEXICA E70

with hermetic ink cupsemi-automaticfor industrial applications

cutting-edge pad printing machine, designed to improve quality and efficiency standards in industrial applications. Perfect for those looking for a high quality print. Main characteristics: • Configuration with column • Single color printing for applications that require maximum quality • Brushless motors for superior precision and high printing force • High level performance for efficient production • Advanced connectivity for easy integration into your workflow Technical Specifications Configuration With Column : • Max number of colours: 1 • It can fit both circular and oval glasses • Max print diameter: Ø 80 mm • Max glasses size: Ø 90 (circular) – 135×70 mm (oval) • Max cliché size: 140×210 mm • Horizontal stroke/blade: 110 mm • Vertical travel: 145 mm • Max pad height: 100 mm • Drive: Electronic • Power supply: 230V 50-60 Hz • Weight: 130 kg • Average energy consumption: 0.7 kWh • A configuration without the column is available Standard Color Setup Configuration • 1 color Ø 60 (1) – Ø 90 (1) – 70×135 (1)
