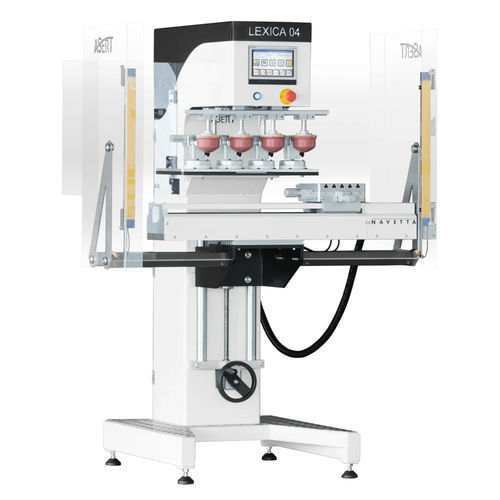

cutting-edge pad printing machine, designed to improve quality and efficiency standards in industrial applications. Perfect for those looking for a high quality print.
Main characteristics:
• Print up to 5 colors for applications requiring maximum quality
• Brushless motors for superior precision and high printing force
• High level performance for efficient production
• Advanced connectivity for easy integration into your workflow
Technical Specifications
• Available with 2 types of setup for positioning the glasses: Trays or Cliché Plate
• Max number of colours: 5
• It can fit both circular and oval glasses.
• Max print diameter: Ø 130 mm
• Max glasses size: Ø 135 (circular) – 225 x 115 mm (oval)
• Max cliché size: 530×290 mm
• Doctor stroke: 170 mm
• Horizontal stroke: 180 mm
• Vertical travel: 145 mm
• Max pad height: 110 mm to 160 mm
• Drive: Electronic
• Power supply: 230V 50-60 Hz
• Weight: 310 kg
• Average energy consumption: 1.5 kWh
• Additional length with rear door opening: 310 mm
• Different sized guards available based on the machine configuration
• layout with protections for 600 stroke linear index configuration
Standard Color Setup Configuration
• 1 color Ø 60 (1) – Ø 90 (1) – Ø 135 (1) – 70×135 (1) – 115×225 (1)
• 2 [colors Ø 60 (2) – Ø 90 (2 – [Ø 60 (1) + Ø 90 (1) – Ø 60 (1) + Ø 135 (1 – [Ø 90 (1) + Ø 135 (1 – 70×135 (2) –
• [Ø 60 (1) + 70×135 (1) – Ø 90 (1) + 70×135 (1 – Ø 135 (1) + 70×135 (1)
• 3 colors Ø 60 (3) – Ø 90 (3) – Ø 135 (3) – 70×135 (3)
• 4 colors Ø 60 (4) – Ø 90 (4)
• 5 colors Ø 60 (5)
